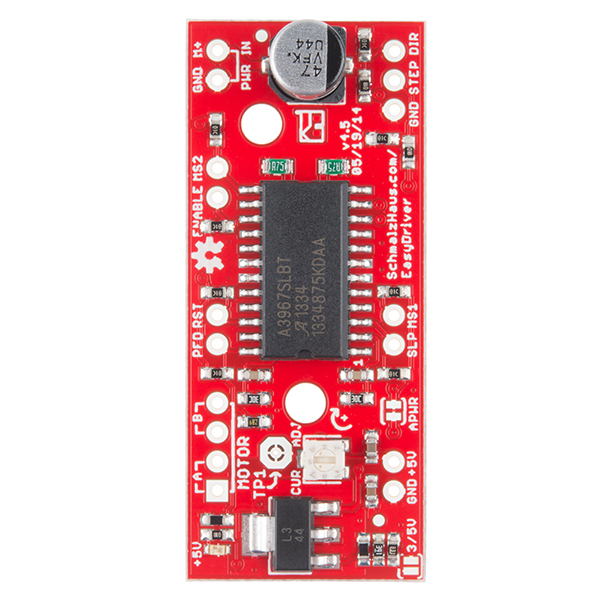

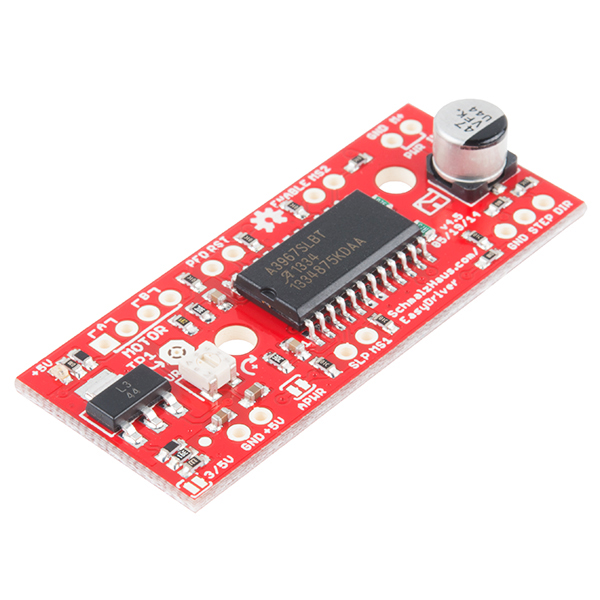

EasyDriver Stepper Motor Driver

SKU:
easydriver-stepper
Weight: Help
6 g
Supplier:

EasyDriver Stepper Motor Driver with microstepping

On stock: n/a

PLN 49,99
PLN 40,64 w/o VAT
Help
EUR 11,76
EUR 9,56 w/o VAT

Notify me when available:

Product has replacement: EasyDriver Stepper Motor Driver A3967

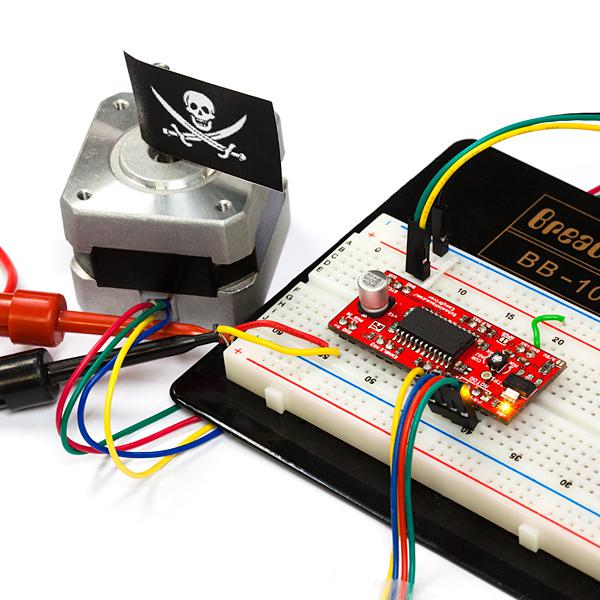

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 20V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Features:

  • A3967 microstepping driver
  • MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
  • Compatible with 4, 6, and 8 wire stepper motors of any voltage
  • Adjustable current control from 150mA/phase to 750mA/phase
  • Power supply range from 7V to 20V. The higher the voltage, the higher the torque at high speeds

Sparkfun product website: ROB-10267
