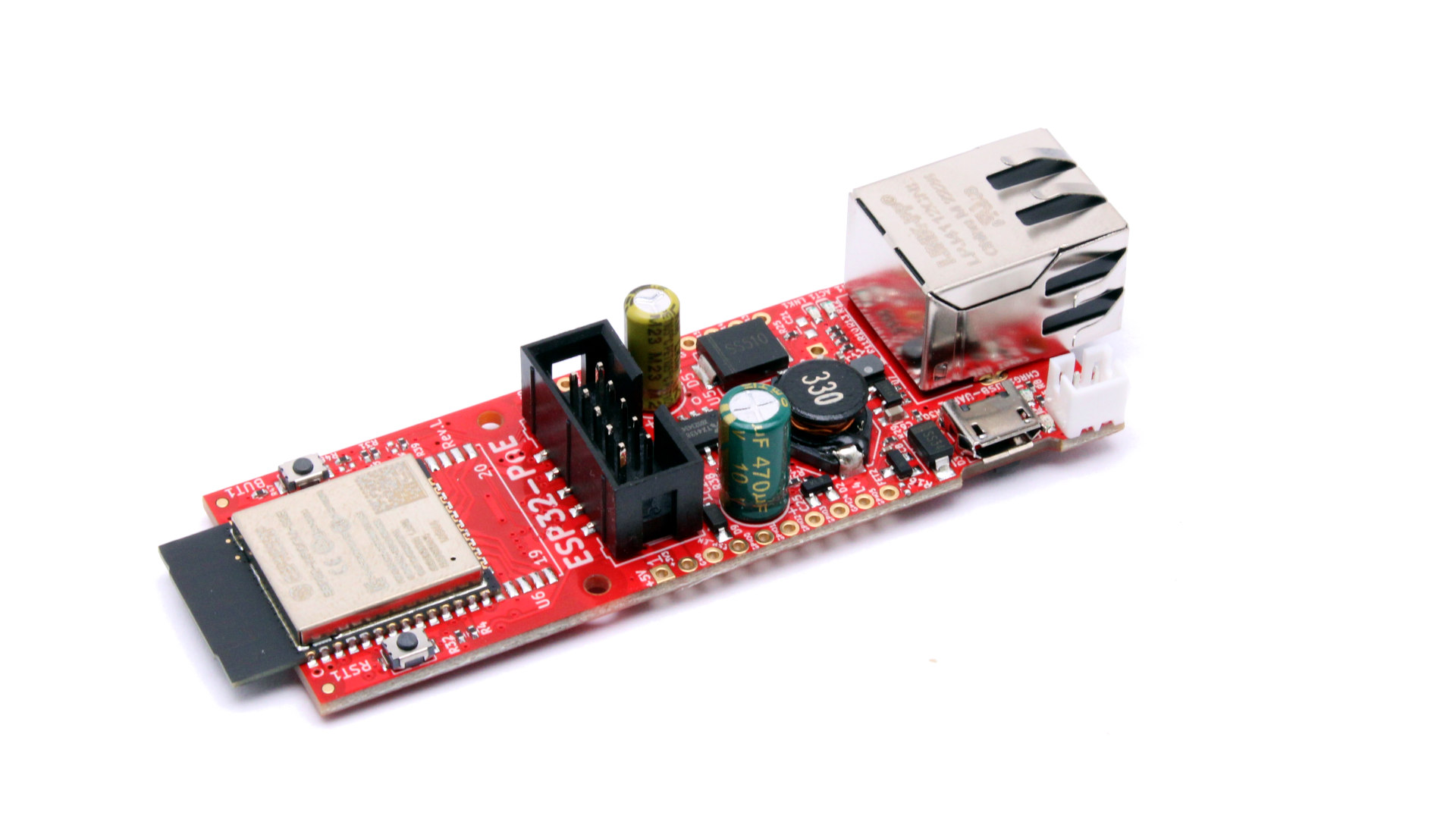

Module Olimex ESP32-POE 16 MB

SKU:
MOD-2377
Weight: Help
42 g
Supplier:

All in one module! ESP32 with Wi-Fi, Bluetooth, Ethernet 100Mbps, PoE, LiPo charger, USB and microSD. And 16 MB of flash memory!

On stock: Help 10

PLN 114,00
PLN 92,68 w/o VAT
Help
EUR 27,15
EUR 22,07 w/o VAT
How many Discount Price per piece
with VAT, in PLN
1 114,00
5+ 8,00 % 104,88
10+ 12,00 % 100,32
25+ 16,00 % 95,76
100+ 20,00 % 91,19
Quantity discounts does not sum with other discounts

Tags: ethernet, PoE, ESP32, board

If you don’t need 16MB flash, we also have ESP32-POE with standard 4MB size in our offer.

IoT in pure form

ESP32 is IoT WiFi/BLE/Ethernet development board with Power Over Ethernet IEEE 802.3 compliant, including pre-standard (legacy) PoE support based on Si3402-B chipset. Perfect solution for connection of IoT sensors and actuators taking power from Ethernet cable.

Chip used to provide PoE power is TPS2375PW - it works with passive PoE 48V (well, it will start from 37V), won’t work with 24V PoE system.

If You want to get better range or place module inside metal case - then similar module, ESP32-POE-EA, with Ethernet, PoE and WiFi with external antenna can be used.

We sell boards in revision M or later (so with mount holes). Product photo may show previous version.

No galvano isolation between power lines of USB and PoE!

Important notice: ESP32-POE has no galvano isolation from Ethernet’s power supply, when you program the board via the micro USB connector the Ethernet cable should be disconnected (if you have power over the Ethernet cable)! Consider using Olimex USB-ISO to protect your computer and board from accidental short circuit.

Specification:

  • ESP32-WROOM-32 WiFi/BLE module
  • 16 MB of flash memoryE
