Character LCD 2x16 RGB

SKU:
lcd-2x16-rgb-pos
Weight: Help
27 g

Character LCD 2x16 RGB

On stock: 10

PLN 29,99
PLN 24,38 w/o VAT
Help
EUR 6,99
EUR 5,68 w/o VAT

16x2 character lcd with RGB backlight.

This is similar to other 16x2 character LCDs that you’ve seen before but with one vibrant difference: The backlight is actually an RGB LED. This means that you can change the backlight of this display to any color you want by controlling the three backlight levels. It also utilizes an extremely common parallel interface so code is freely available (check below for an Arduino example). You will need ~11 general I/O pins to interface to this LCD screen, plus an extra 3 pins for the RGB backlight.

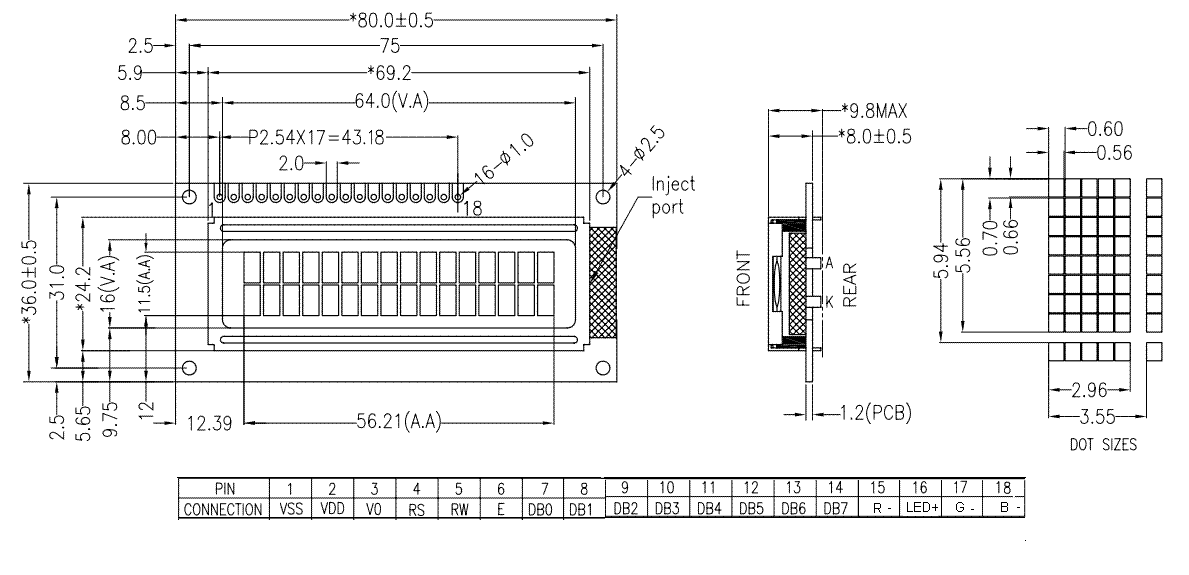

The backlight is controlled by pins 18, 17, and 16.

Wyświetlacze znakowe (interfejs równoległy):
Wyświetlacze LCD I2C / SPI:
Akcesoria i moduły:

Files
