Ultrasonic Precision Rangefinder XL-MaxSonar-WR1 [MB7070]

SKU:
MXB-230
Weight: Help
54 g
Supplier:

Range 7.5m, output: analog, serial, AE, IP67

On stock: Help 1

PLN 472,00
PLN 383,74 w/o VAT
Help
EUR 109,77
EUR 89,24 w/o VAT
How many Discount Price per piece
with VAT, in PLN
1 472,00
7+ 5,00 % 448,40
14+ 10,00 % 424,81
35+ 15,00 % 401,20
70+ 20,00 % 377,60
Quantity discounts does not sum with other discounts

The XL-MaxSonar-WRA is our most popular weather resistant sensor designed for outdoor detection and ranging.

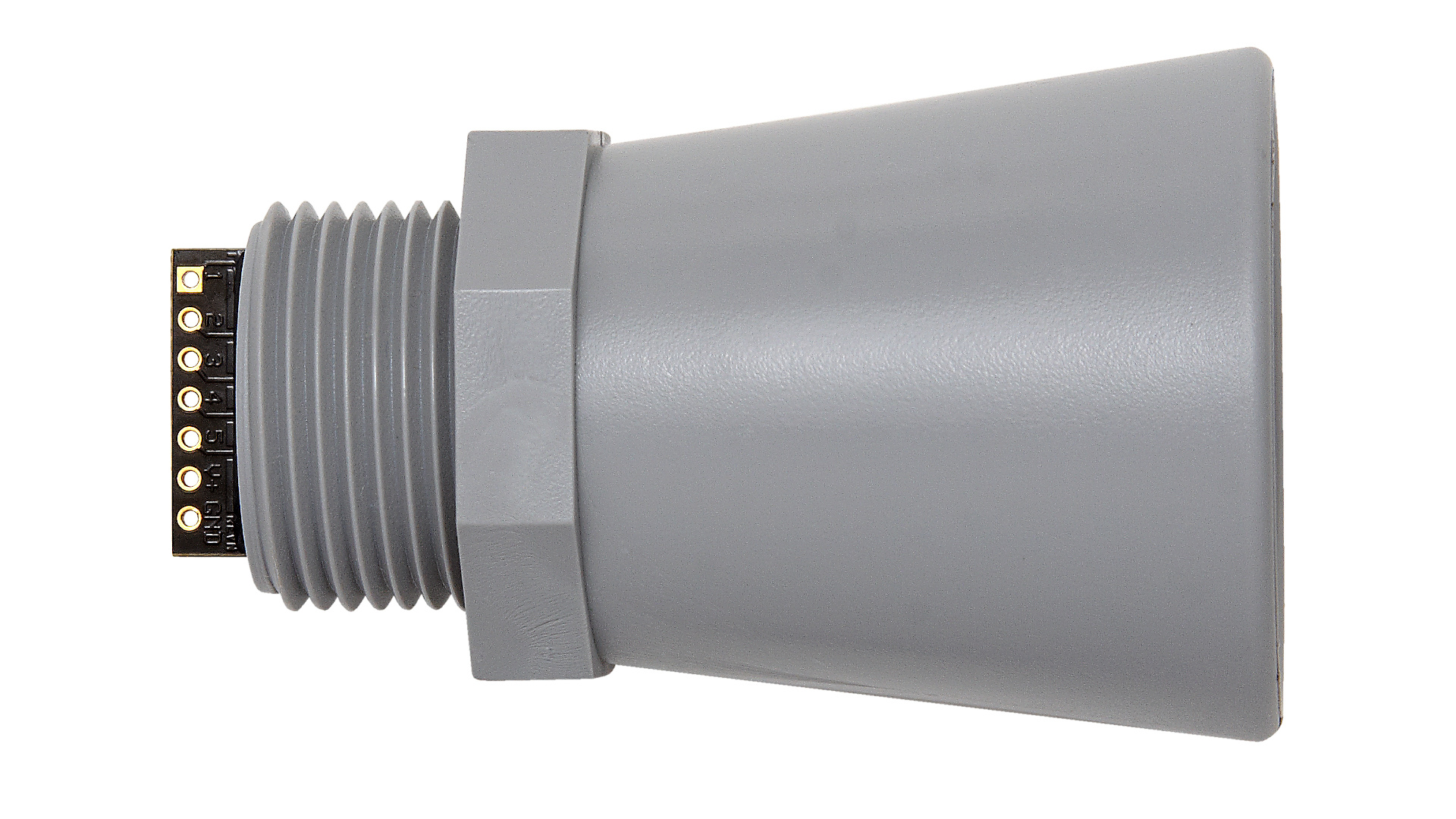

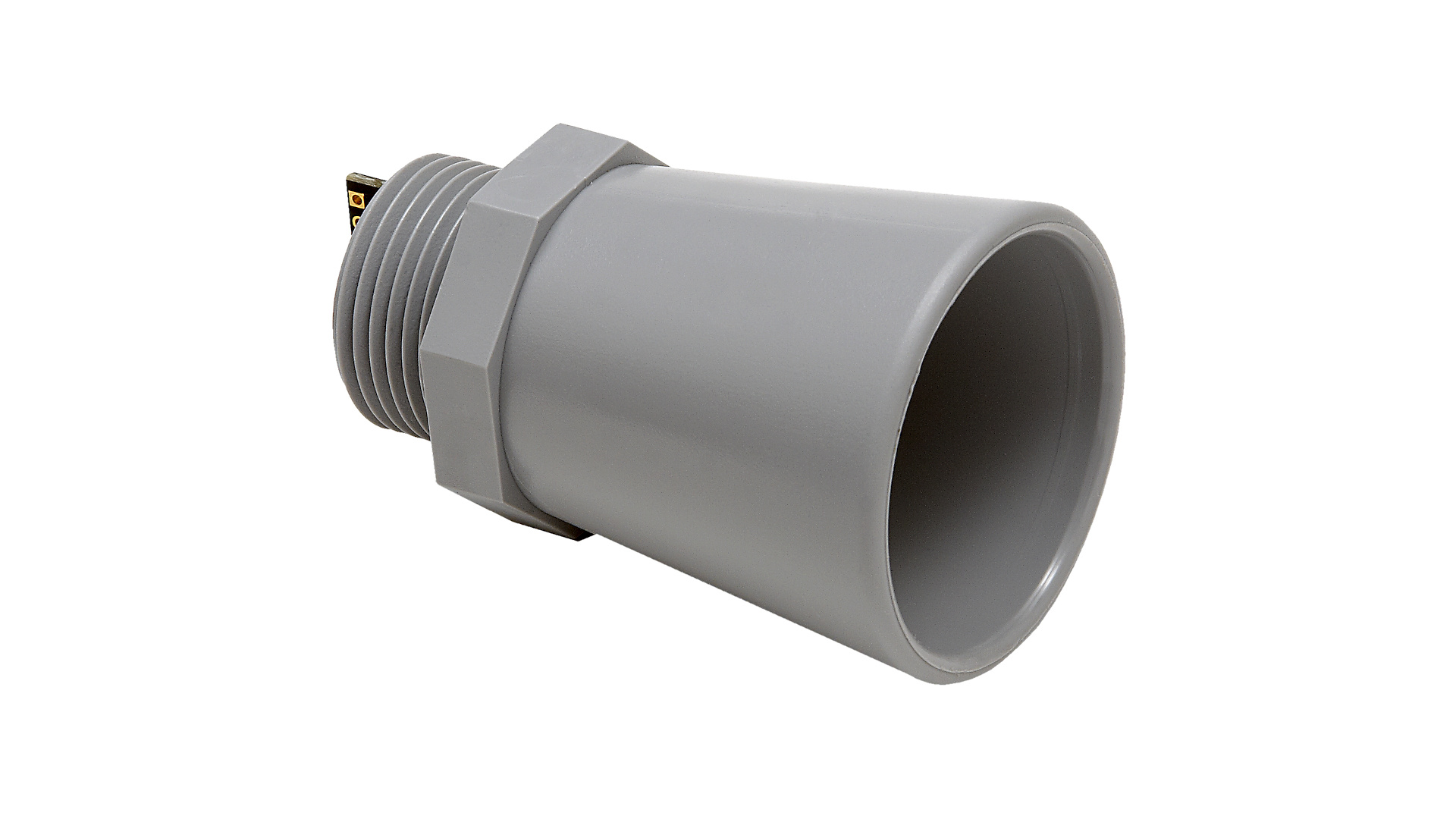

The weather resistant XL-MaxSonar-WR is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.

Features:

  • Resolution of 1 cm
  • 10Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4” National Pipe Thread Straight)
  • Our most popular outdoor, weather resistant, ultrasonic sensor
  • Analog envelope output for easy troubleshooting and signal processing
  • Maximum range of 765 cm (300 inches)
