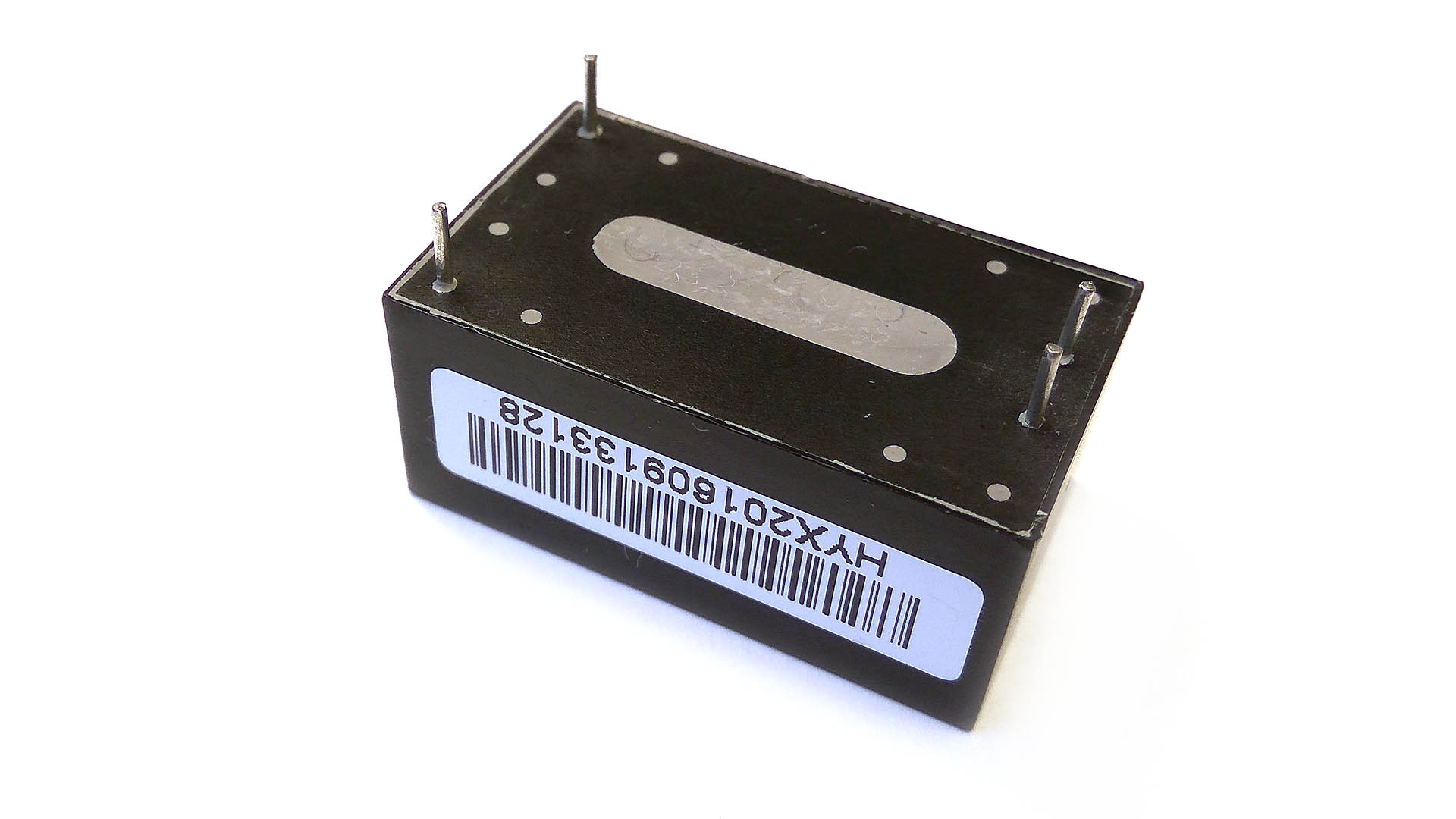

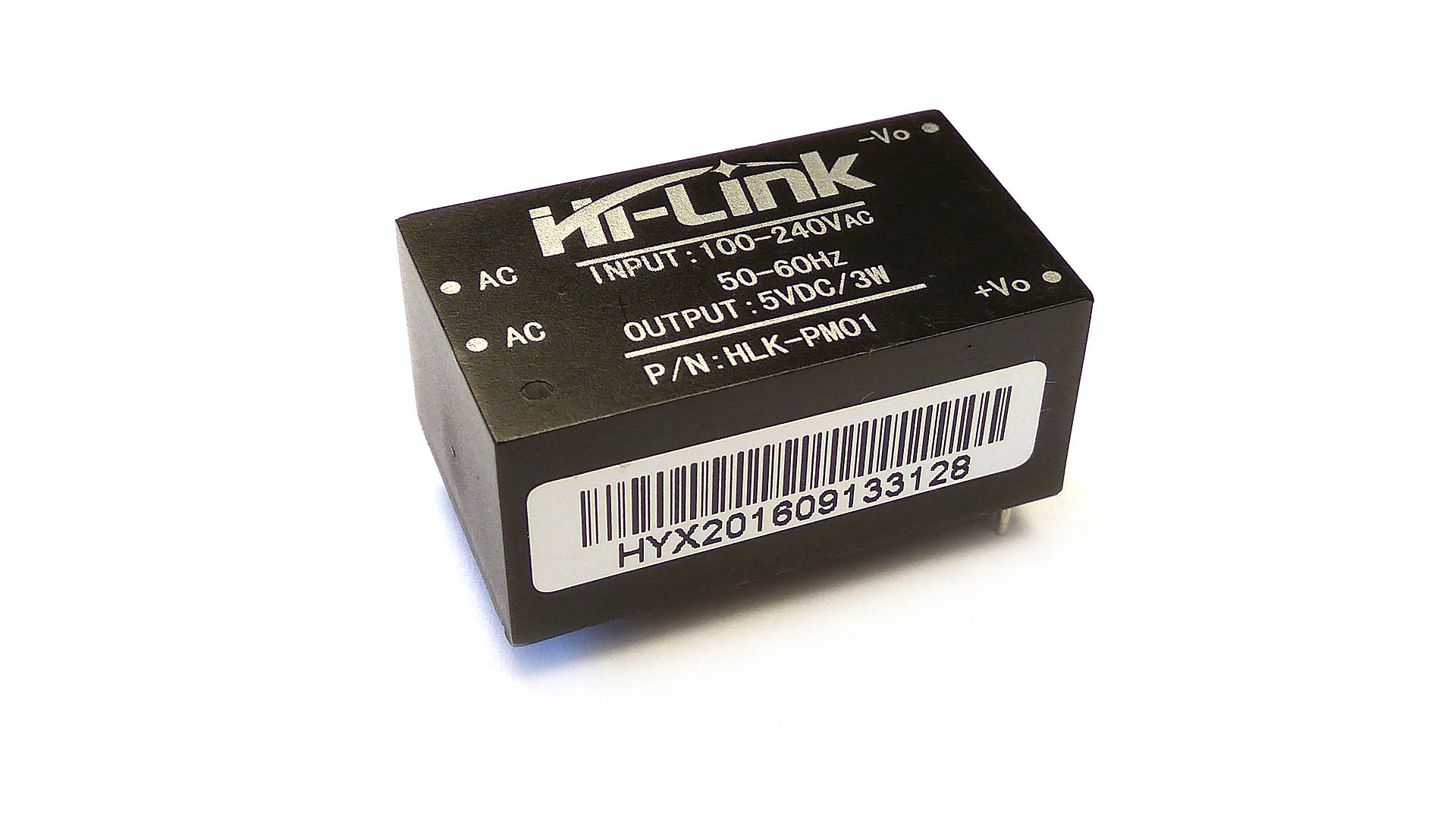

Ultra-compact power supply module HLK-PM01 100-240V / 5V 600mA

SKU:
HLK-PM01
Weight: Help
23 g

On stock: 3

PLN 17,90
PLN 14,55 w/o VAT
Help
EUR 4,21
EUR 3,42 w/o VAT
How many Price per pcs
with VAT, in PLN
You save
with VAT, in PLN
1 17,90
5+ 15,90 9,96
Quantity discounts does not sum with other discounts

Specification:

  • Rated input voltage: 100-240 VAc
  • Input voltage range: 90-264 VAc
  • Maximum input current: ≤0.2 A
  • Input current surge: ≤10 A
  • Maximum input voltage: ≤270 VAc
  • Enter slow start: ≤50 mS
  • Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%
  • Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%
  • Long-term reliability: MTBF≥100000 h
  • Load rated output voltage: +5±0.1 V DC
  • Full rated output voltage: +5±0.2 V DC
  • Short-term maximum output current: ≥1000 mA
  • The maximum output current for a long time: ≥600 mA
  • Voltage Regulation: ±0.2 %
  • Load Regulation: ±0.5 %
  • Output ripple and noise: ≤50 mVp-p
  • Output over-current protection: 150-200% of the output maximum load
  • Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal

Oferta zasilaczy do druku Hi-Link:
Na zamówienie możemy sprowadzić również:
  • HLK-PM12 3W - 12V 250mA
  • HLK-5M03 5W - 3.3V 1500mA
  • HLK-5M05 5W - 5V 1000mA
  • HLK-5M12 5W - 12V 450mA
