Realy module kit - 5V

SKU:
nettigo-relay
Weight: Help
29 g
Supplier:

Simple, one channel relay module. Kit to learn soldering. Powered by 5V.

On stock: 11

PLN 11,99
PLN 9,75 w/o VAT
Help
EUR 2,82
EUR 2,29 w/o VAT

Small (76mm x 20mm) relay module, sold as kit to be soldered. Kit contains:

  • PCB
  • RM96p/5V relay
  • protection diode
  • LED for state signal
  • resistors and NPN transistor
  • terminal connectors

Technical data

  • current consumption (whole module) - 53 mA
  • logic signal
    • 410 µA when logic is 5V
    • 225 µA when logic is 3.3V

If You need ready to use module, consider other relay modules from our offer.

Relay modules with 5V coils:
Relay modules with 12V coils:
Modules with Solid State Relays (SSR):

Files

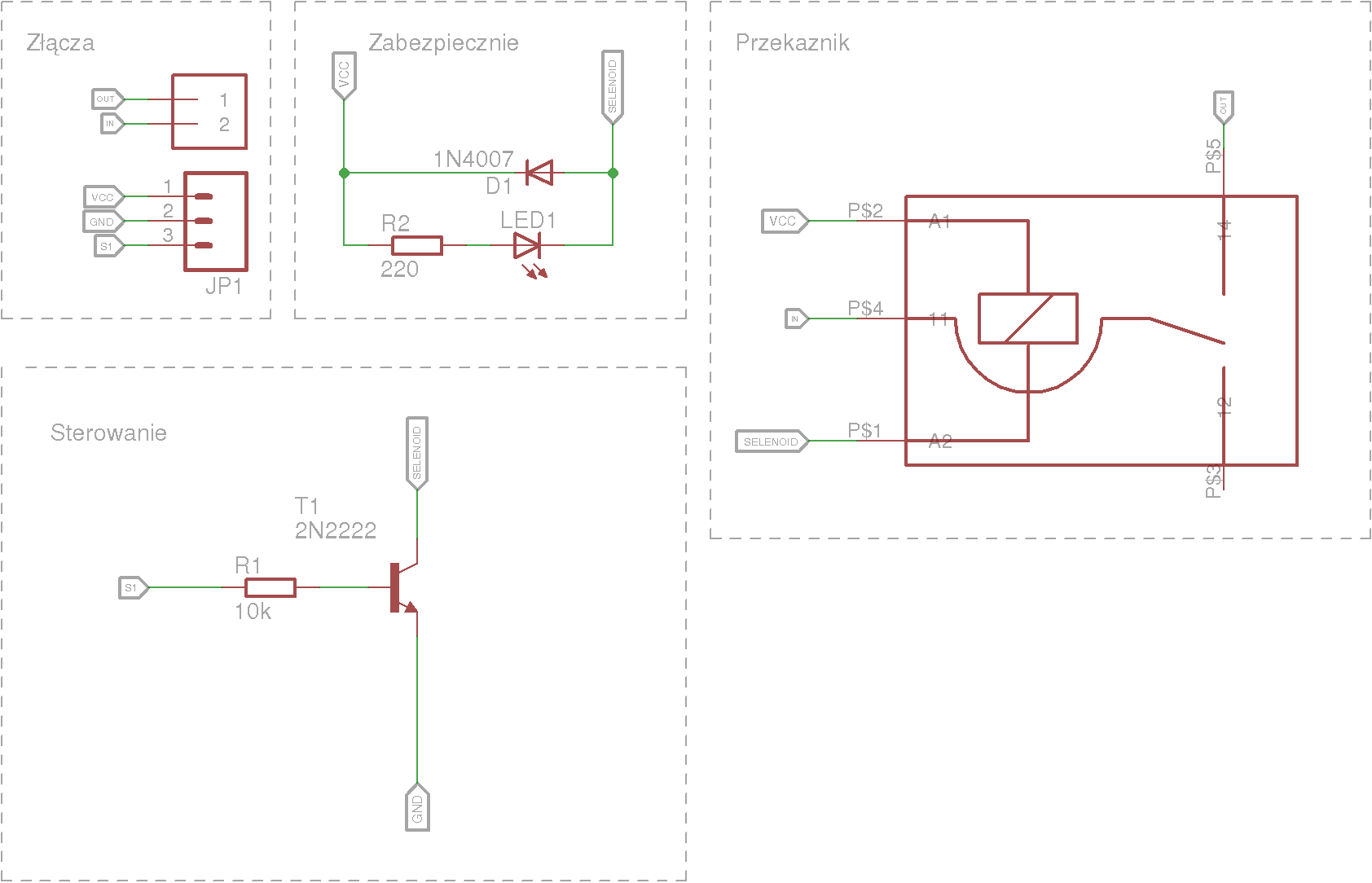

Schematics



Eagle files for module
