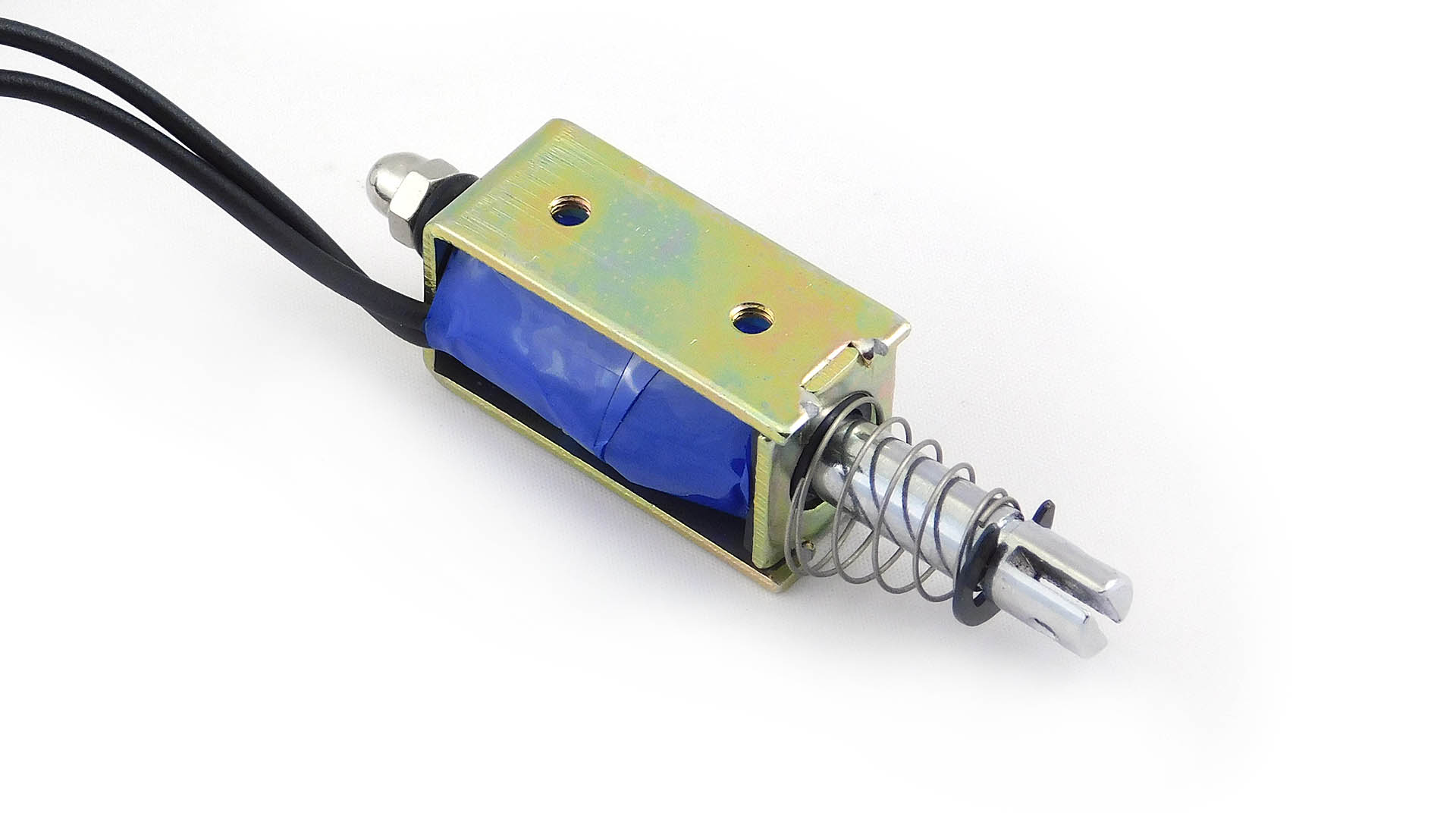

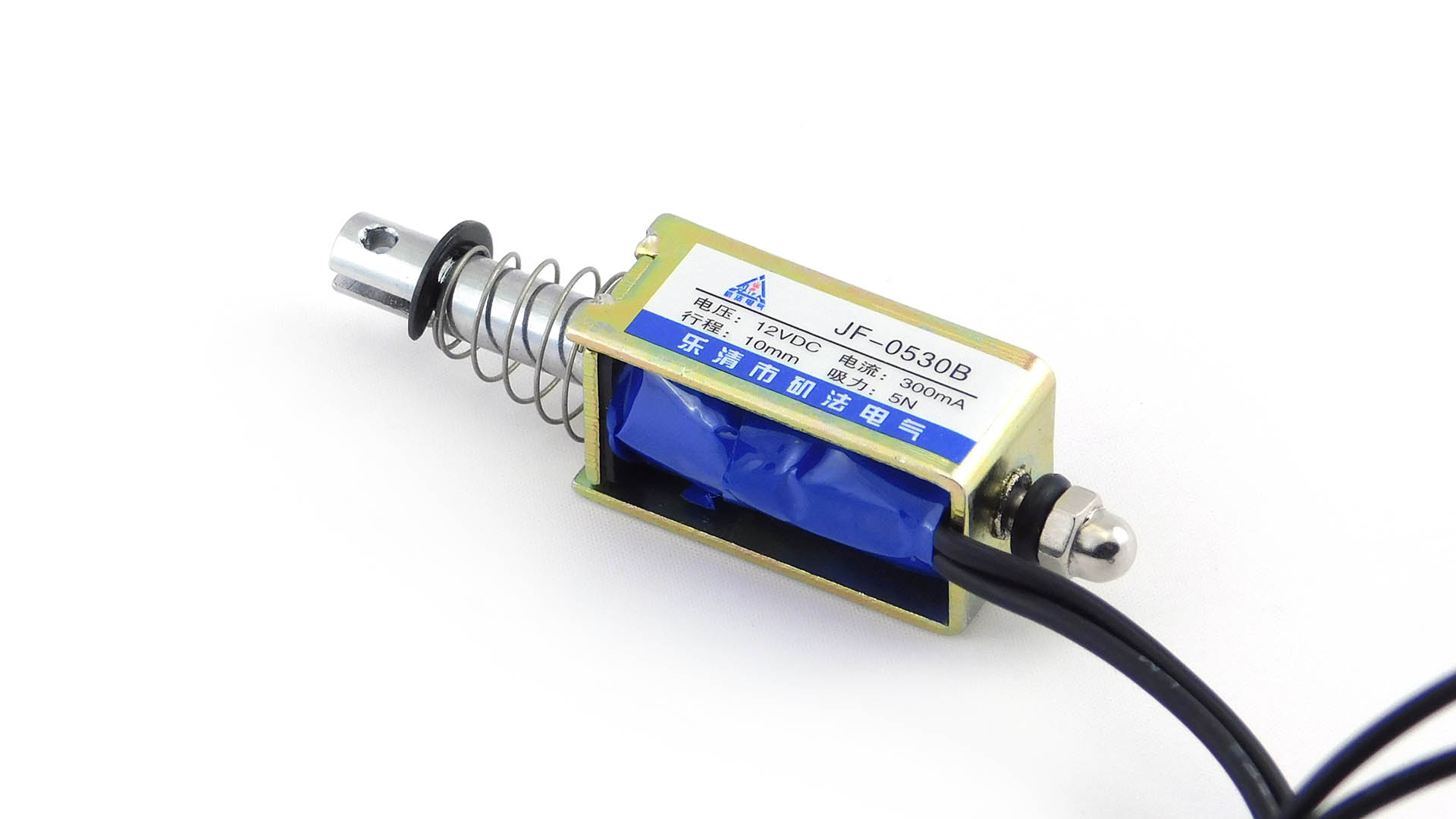

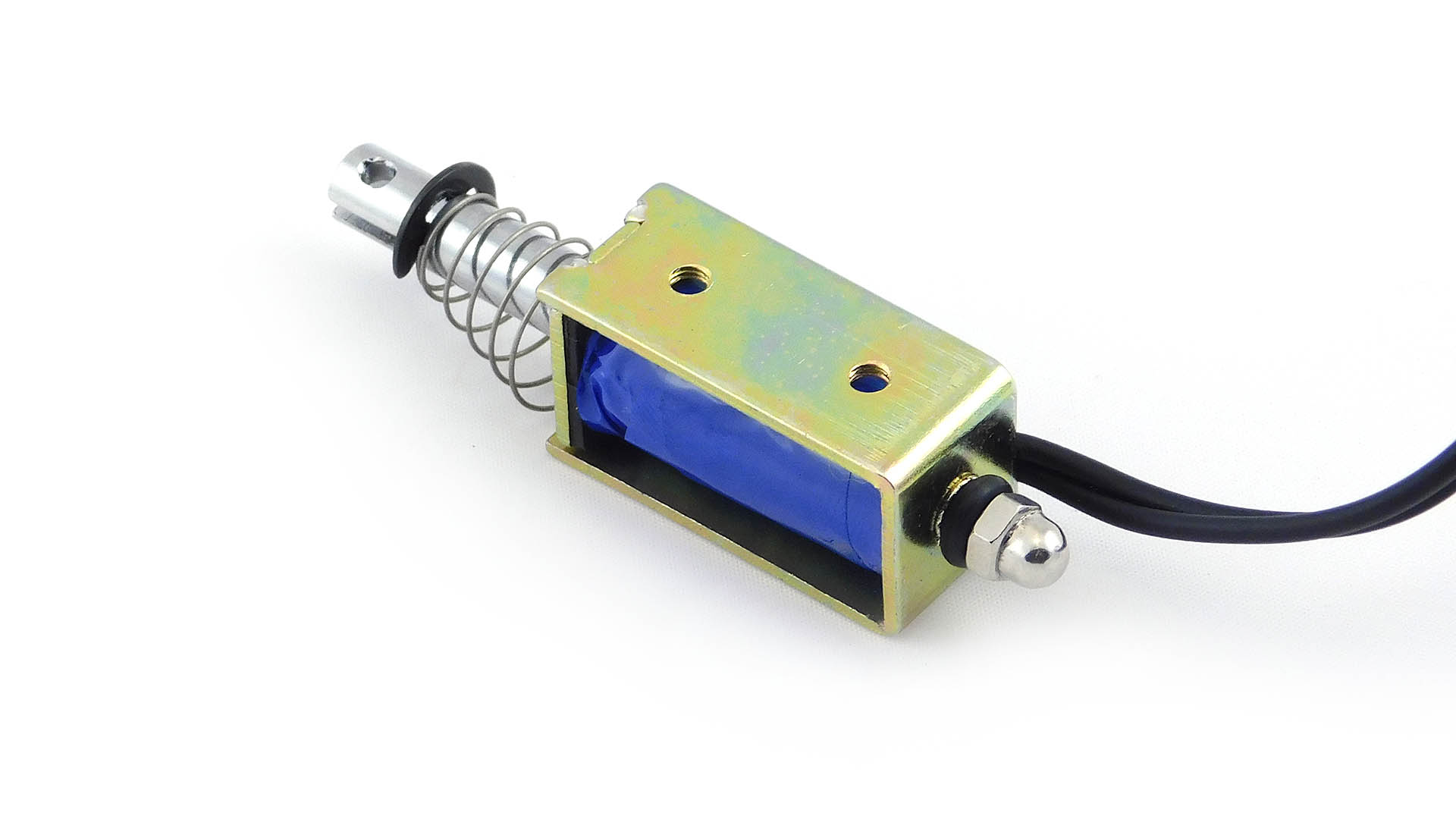

Pulling electromagnet 12V 5N 0.5kg JF-0530B

SKU:
ROB-1201

Simple pulling electromagnet with threaded mounting holes.

On stock: 3

PLN 20,50
PLN 16,67 w/o VAT
Help
EUR 4,94
EUR 4,02 w/o VAT

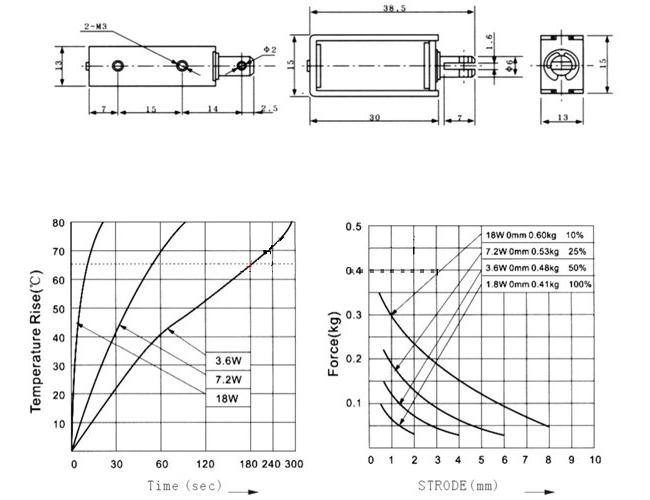

Specification:

  • Model: JF-0530B
  • Type: pulling electromagnet
  • Supply voltage: 12 V
  • Rated current: 0.3 A
  • Max current: 1.5 A
  • Max power: 18W
  • Pulling force: 5N (0.51 kg)
  • Bolt travel (stroke): 10 mm
  • Body size: 30x15 mm
  • Mounting holes size: M3
  • Mounting holes distance: 15 mm
  • Weight: 30 g
  • Cable length: 20-22 cm
