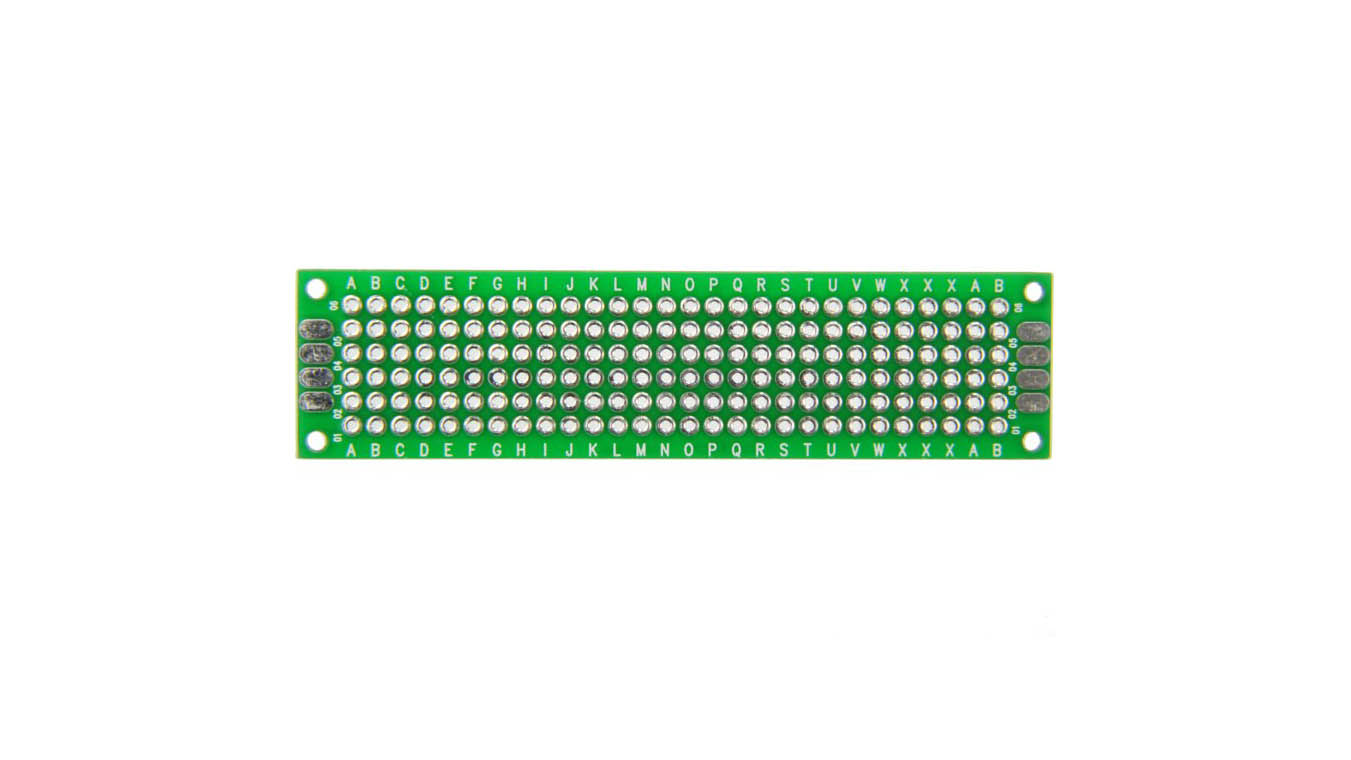

Protoboard, 20x80 mm, double sided

Weight: Help
5 g

Protoboard, 20x80 mm, double sided. 168 pads.

On stock: Help 805

PLN 1,59
PLN 1,29 w/o VAT
EUR 0,37
EUR 0,30 w/o VAT
How many Discount Price per piece
with VAT, in PLN
1 1,59
5+ 8,00 % 1,46
10+ 12,00 % 1,40
25+ 16,00 % 1,33
Quantity discounts does not sum with other discounts

Tags: protoboard


You can build almost any circuit on breadboard. It is fast and convenient. Need some changes? Just rearrange jumper wires, elements and ready. But this can be also disadvantage when You want to use circuit for some longer time. Jumper wires can be plugged out by accident, elements don’t have rock-solid connectivity… You could design custom PCB, but this is time consuming and process requires many stages. In such cases protoboards are very handy. Regular PCB with drilled holes in 0.1” raster (2.54mm). Each hole is metalized. You can solder elements and wires. Mounting holes are handy when placing board in some case.

Technical details:

  • Size: 20 x 80 mm
  • Number of pads: 168 (6 x 23 pads)
  • Additional pads on shorter edges
  • Holes diameter: 0.9 mm
  • Double sided, metalized holes
  • Thickens: 1.6 mm
  • Green PCB, FR-4 type
  • Raster: 2.54 mm / 0.1 “ /100 mils
