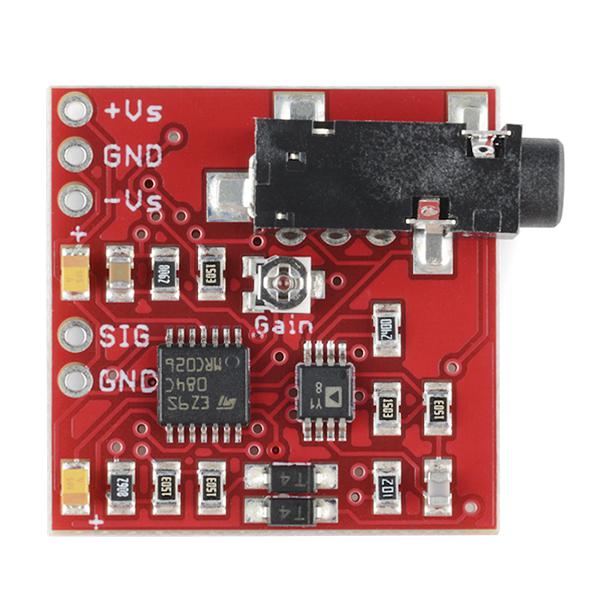

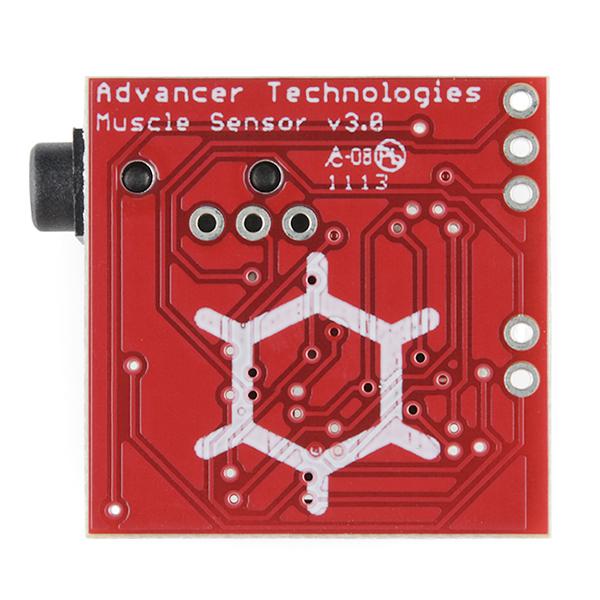

Muscle sensor kit v3

Measuring muscle activity by detecting its electric potential, referred to as electromyography (EMG), has traditionally been used for medical research. However, with the advent of ever shrinking yet more powerful microcontrollers and integrated circuits, EMG circuits and sensors have found their way into all kinds of control systems.

This sensor will measure the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. It’s that easy: stick on a few electrodes, read the voltage out and flex some muscles!

This kit comes with everything you need to start sensing muscle activity with your Arduino or controller of choice.

Tutorials:

• Conductive Fabric Electrodes
• Bionic Iron Man Armor
