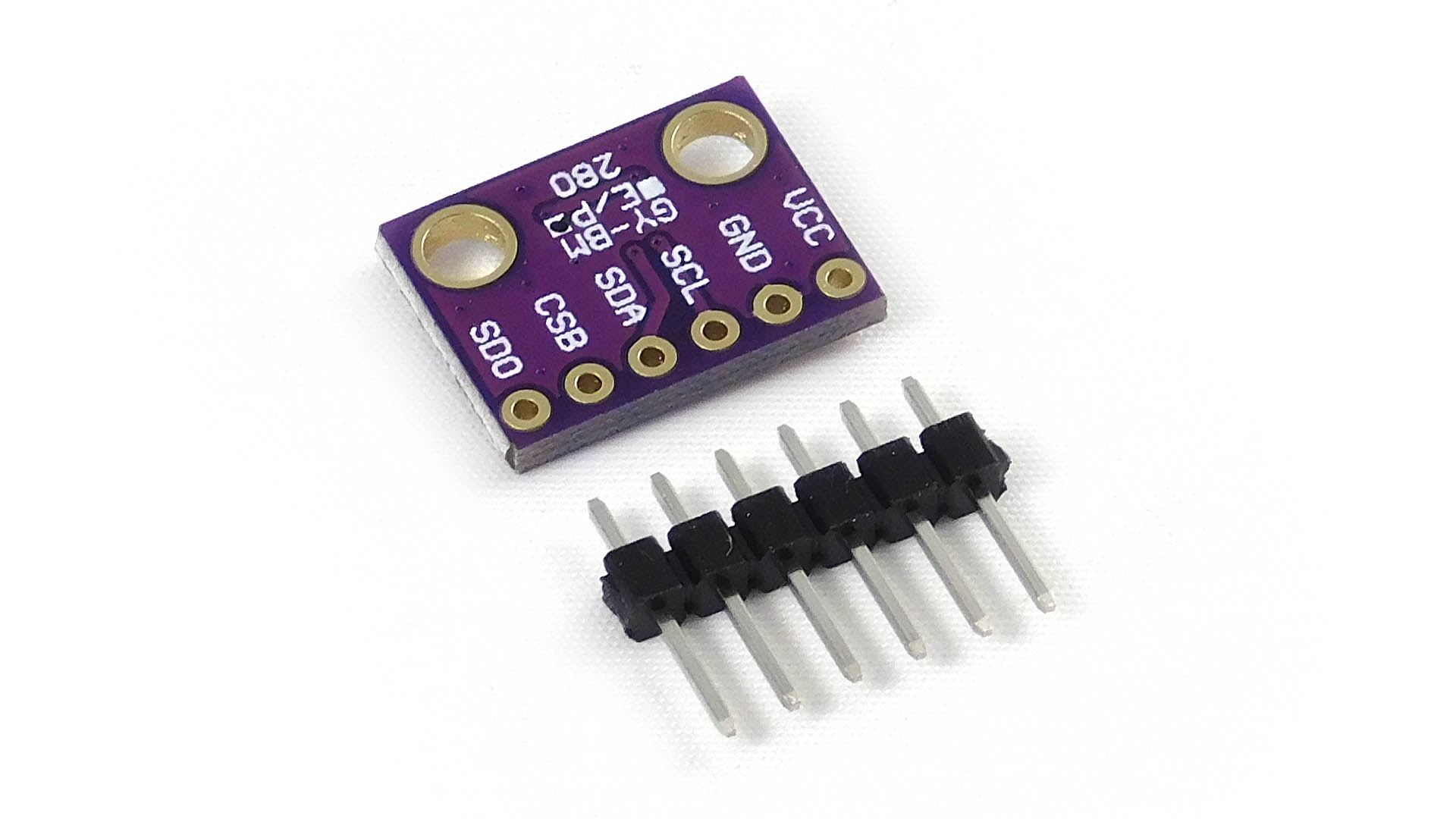

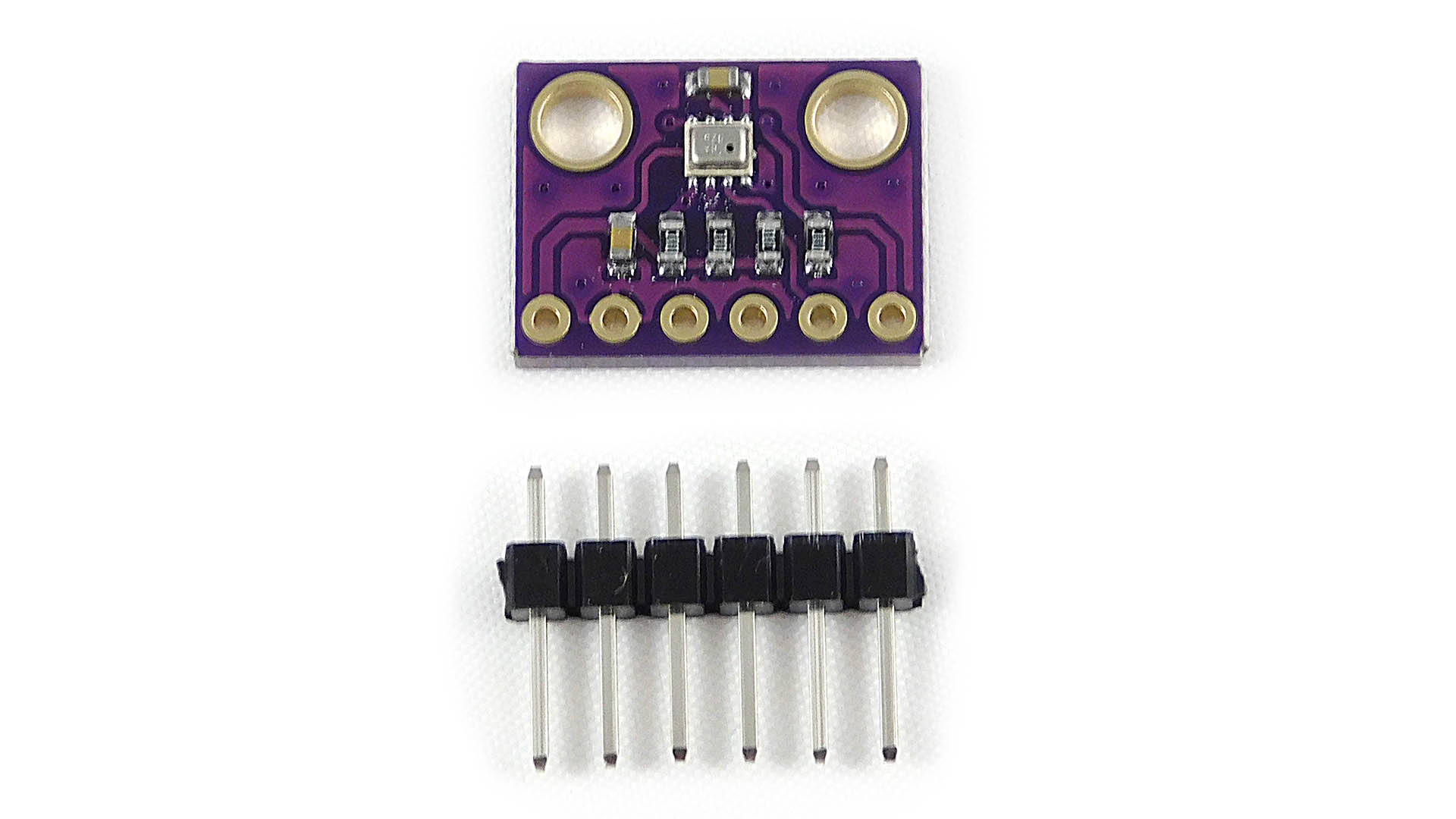

Module preassure sensor Bosch BMP280

SKU:

SEN-1221

Weight:

2 g

Supplier:

Small & compact digital atmospheric pressure and temperature sensor - Successor of BMP180. No matter if You are building weather station or drone this sensor will be handy.

On stock: Help 11

PLN 9,99

PLN 8,12 w/o VAT

EUR 2,32

EUR 1,89 w/o VAT

How many	Discount	Price per piece with VAT, in PLN
1		9,99
5+	8,00 %	9,19
10+	12,00 %	8,79
25+	16,00 %	8,39
Quantity discounts does not sum with other discounts

Tags: temperatura, ciśnienie, BMP280

Bosch BMP280 - a successor od BMP180.

BMP280 Specification:

Operation range (full accuracy):
- Pressure: 300…1100 hPa
- Temperature: -40…85°C
Absolute accuracy (Temp. @ 0…+65°C): ~ ±1 hPa
Relative accuracy p = 700…900hPa (Temp. @ +25…+40°C): ± 0.12 hPa (typical) equivalent to ±1 m
Average current consumption (1 Hz data refresh rate): 2.74 μA, typical (ultra-low power mode)
Average current consumption in sleep mode: 0.1 μA
Average measurement time: 5.5 msec (ultra-low power preset)
Supply voltage VDDIO: 1.2 … 3.6 V
Supply voltage VDD: 1.71 … 3.6 V
Resolution of data
- Pressure: 0.01 hPa ( < 10 cm)
- Temperature: 0.01° C
Temperature coefficient offset (+25°…+40°C @900hPa): ± 0.12 hPa (typical) equivalent to ±1 m
Interface: I2C and SPI

Module specification:

Supply voltage: 3.3 V
Size: 15 x 10 mm
Weight: 1 g
Diameter of mounting holes: 3 mm

Pinout:

VCC - Supply voltage 3.3 V
GND - Ground
SCL - Clock signal I2C / SPI
SDA - Data line I2C / MOSI in SPI mode
CSB - Chip Select
SD0 - MISO in SPI mode
