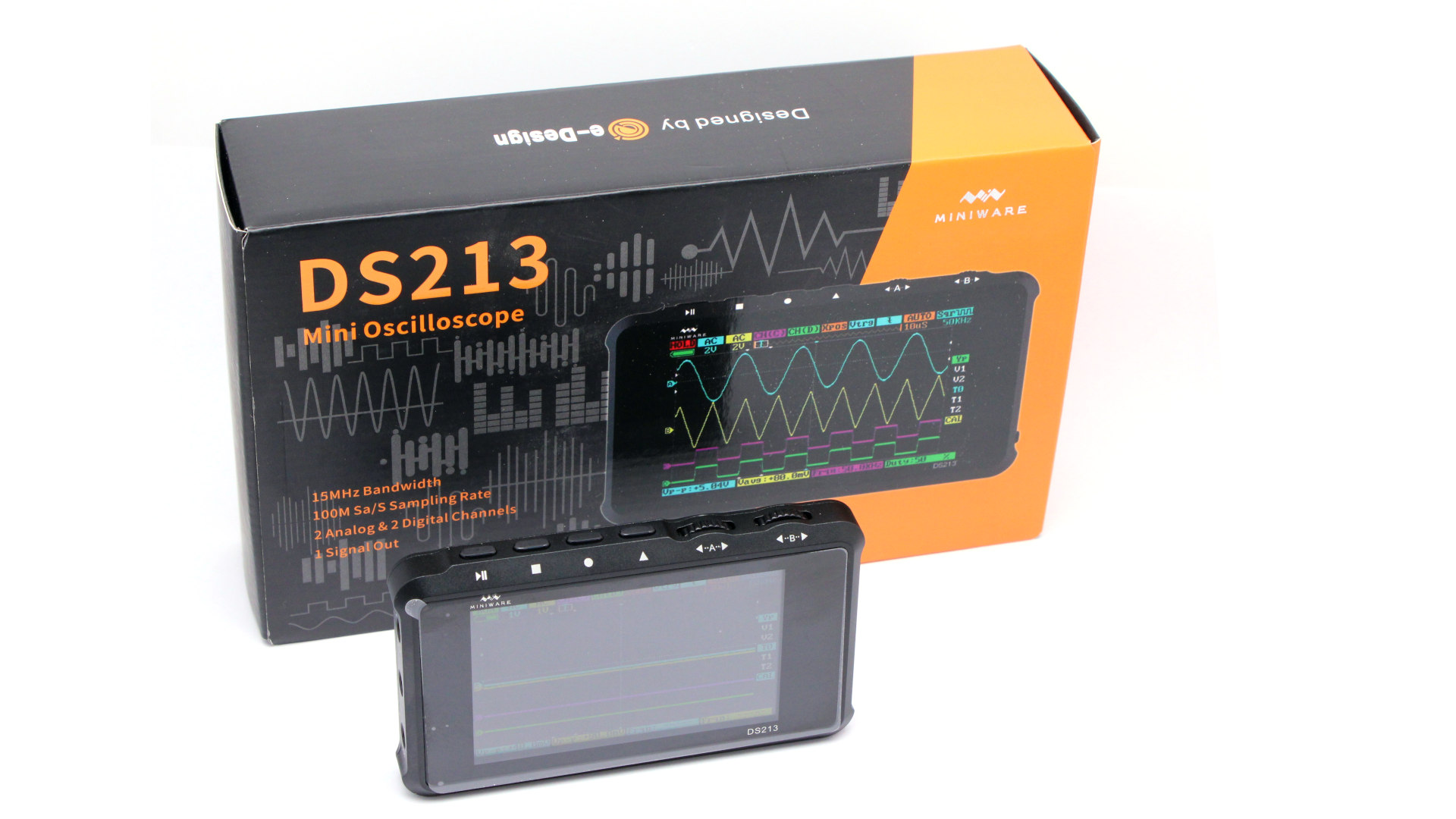

MiniDSO DS213 4-channel Pocket Digital Storage Oscilloscope

SKU:
NAR-1728
Weight: Help
291 g

Newest version of legendary pocket DSO - digital storage oscilloscope, 4 channels, open source. All that packed in nice, Aluminum Alloy case!

On stock: 3

PLN 1 099,90
PLN 894,23 w/o VAT
Help
EUR 258,19
EUR 209,91 w/o VAT

SALE

Good deal!

PLN 899,90
PLN 731,63 w/o VAT
Help
EUR 211,24
EUR 171,74 w/o VAT

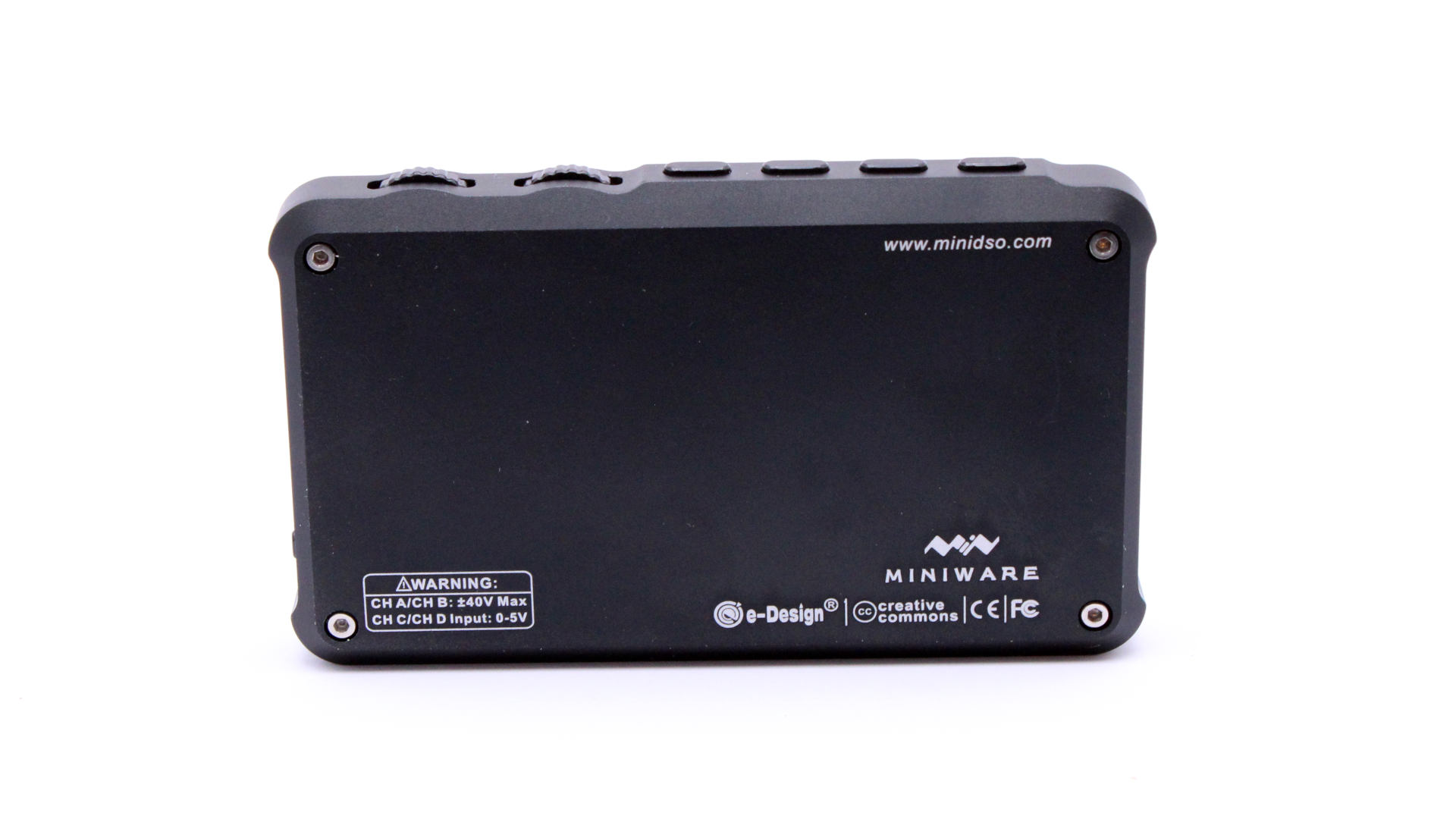

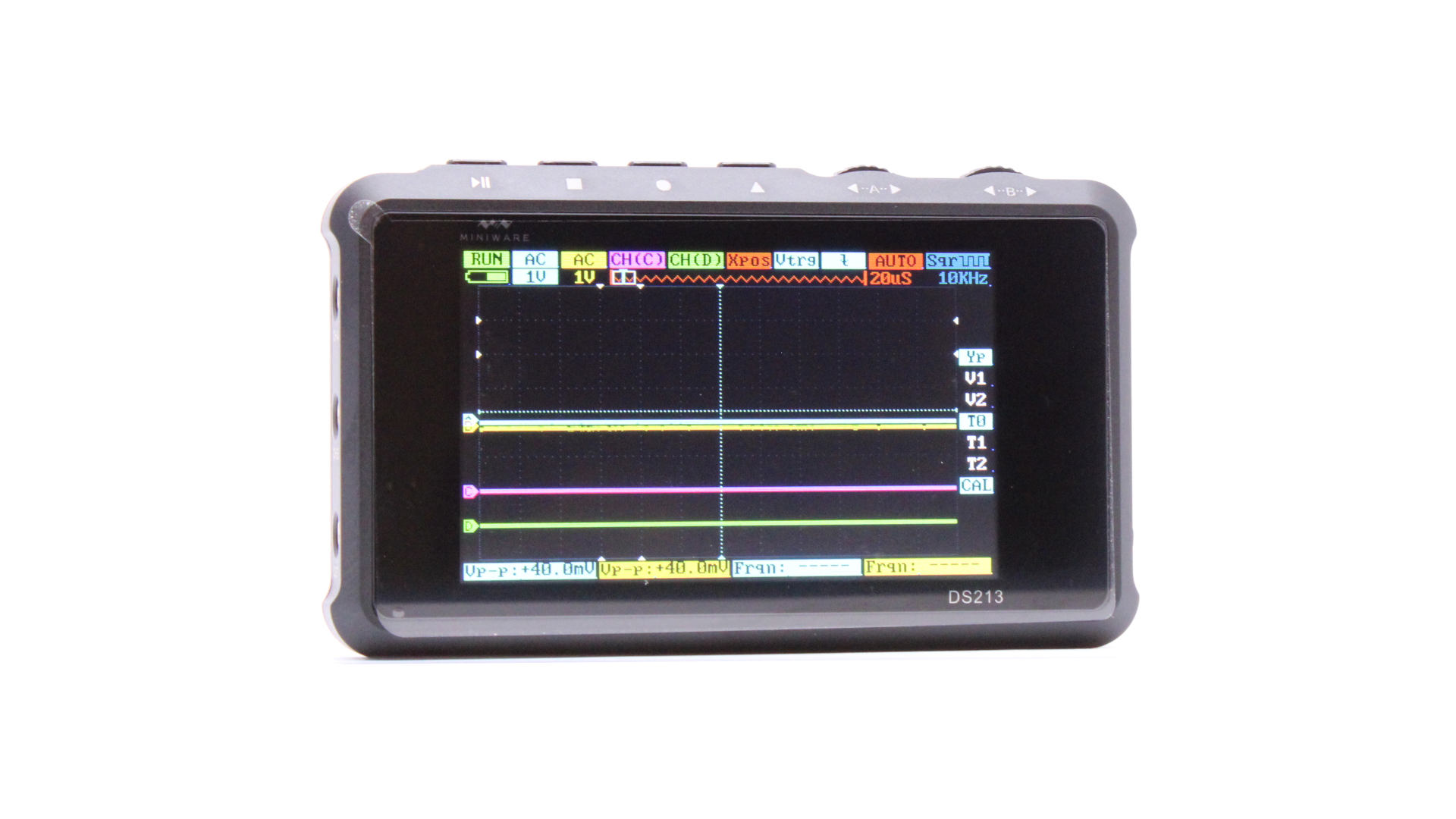

MiniDSO DS213 is small, digital oscilloscope. New, rigid aluminum alloy shell.

DS213 - basic features

  • Pocket size and light weight
  • Two 100MS/s analog channels, plus two digital channels
  • Signal Generator
  • Auto Measurement
  • Various Triggering Option
  • Easy waveform storage
  • Firmware upgrade
  • User applications
  • Open source

DS213 - details

  • Analog channel - 2 : [CH_A] [CH_B]
  • Digital channel - 2 : [CH_C] [CH_D]
  • Vertical Scale: 10mV-10V/div (x1 probe)
  • Vertical solution: 8 bit ;
  • Input coupling: AC/DC ;
  • Max input voltage: +/- 40Vpp (x1 probe);
  • Storage: 4K per channel
  • Software trigger type: edge, pulse, level (to be added)
  • Hardware trigger type: edge
  • Trigger source: CH1/CH2/EXT
  • Test Signal generator: 10Hz to 8Mhz
  • Storage: internal 8MB USB disk
  • Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
  • Cursor measurement: Level, Voltage
  • Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
  • Sampling mode: real time
  • Sampling rate: 100MSa/S
  • Power: Lipo battery 1000mAh
  • Dimension: 99.5 x 58.5 x 13.5 mm

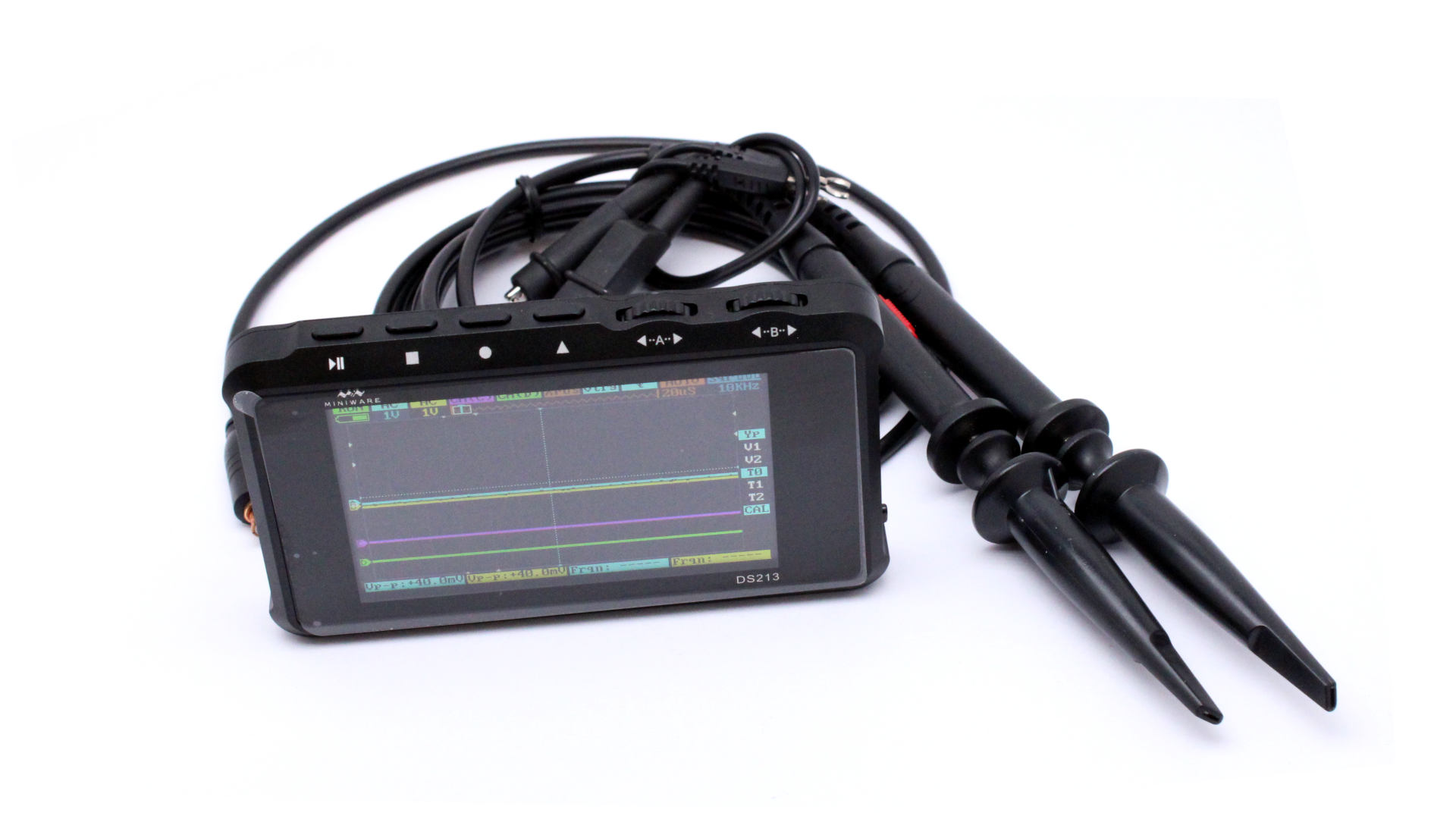

  • Accessories within Pack: 2 mueller mcx oscilloscope probe, 2 digital probe,
