micro:GamePad V3.0 - GamePad for BBC micro:bit (DFRobot DFR0536)

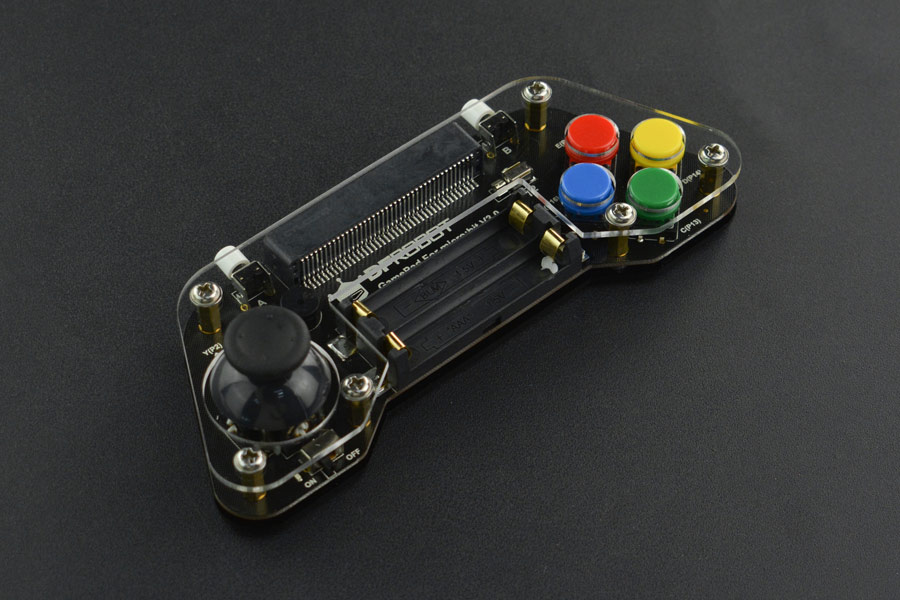

micro:GamePad V3.0 for BBC micro:bit is a gamepad with a two-axis analog joystick and 7 buttons. The combination of joystick and gamepad allows you to control Maqueen’s direction and speed at the same time. In V3.0 version there is onboard battery box, which is more convenient to use than older external one.

Features:

• Two axis (X-Y) programmable analog joystick

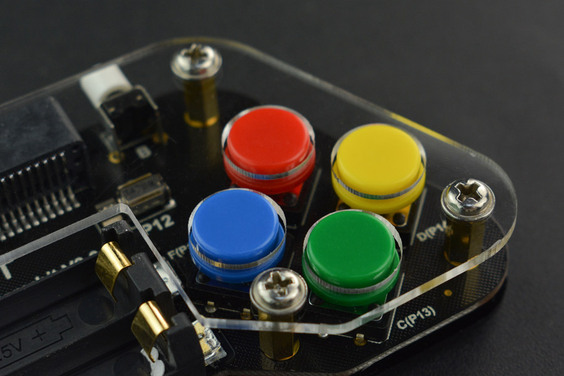

• 7 programmable buttons
• Onboard buzzer, vibrating motor & LED

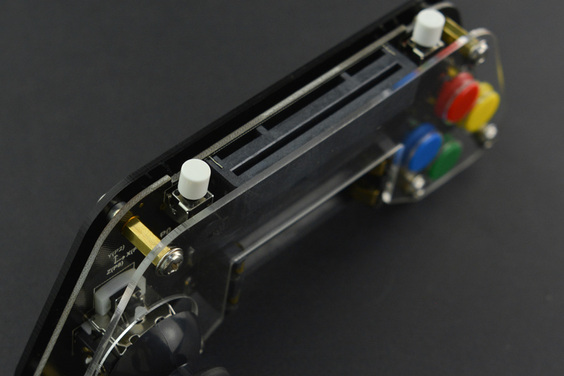

• Acrylic enclosure - safe to use and comfortable to handle

Specification:

• Power: 3V DC (2 x AAA batteries)
• Joystick: 2 axis analog + button (X: P1, Y: P2, Z: P8)
• Onboard LED and vibration motor: P12
• Onboard buzzer: P0

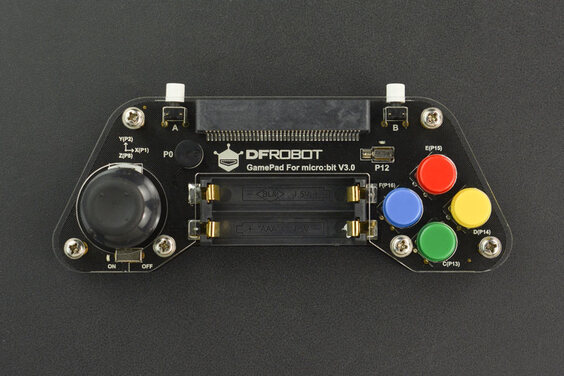

• Buttons: A(A), B(B), C(P13), D(P14), E(P15), F(P16), Z(P8)
• Dimension: 148 x 57 mm
