Arduino Leonardo ETH
SKU:
leonardo-eth
Weight:
37
g
Arduino Leonardo with builtin Ethernet
Product is retired

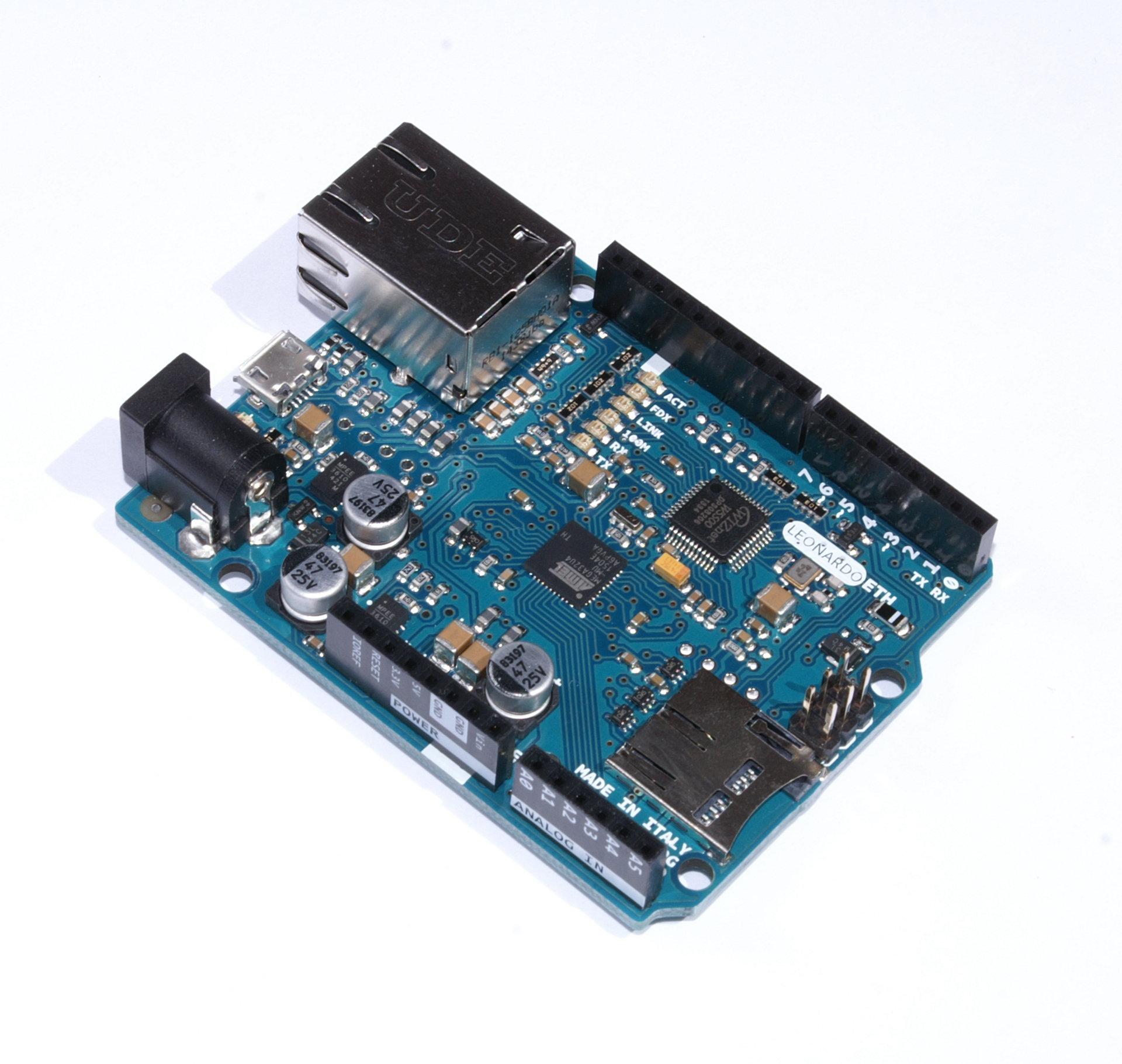

The Leonardo ETH is a microcontroller board based on the previous Arduino Leonardo connected with Ethernet Shield with microSD adapter. On the board we have a ATmega32u4 which is used for pragramming, the new Wiznet W5500 ethernet controller and new status LEDs.
Specs:
- Microcontroller: ATmega32u4
- Working voltage: 5V
- Recommended power supply voltage: 7 - 12V
- PoE power supply: 36 - 57V
- Digital pins: 20
- PWM pins: 7
- Reserved pins: 4, used by microSD card and 10, used by W5500 ethernet controller
- Analog input pins: 12
- Maximum I/O current: 40 mA
- Flash: 32kB (4kB for bootloader)
- SRAM: 2.5kB
- EEPROM: 1kB
- µC Frequency: 16MHz
- Ethernet controller: Wiznet W5500
- microSD card addapter with voltage translators
Important, this board will work only with IDE downloaded from Arduino.org
