Antenna 868 MHz for LoRa modules

SKU:
AKC-1424
Weight: Help
9 g
no

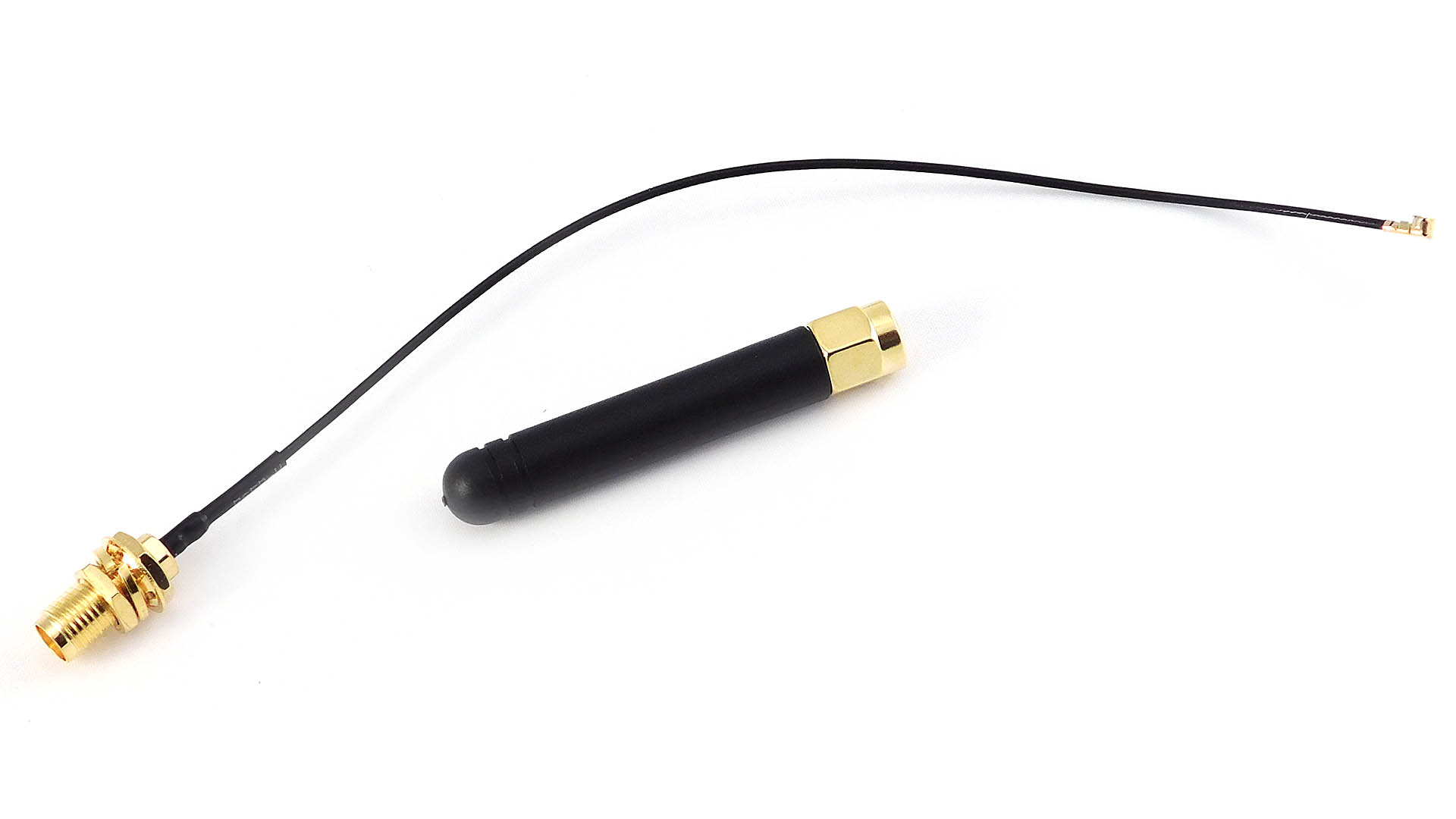

Small antenna for LoRa modules working in 868-915 MHz frequency range.

On stock: Help 266

PLN 9,90
PLN 8,05 w/o VAT
Help
EUR 2,30
EUR 1,87 w/o VAT

Specification:

  • Type: omnidirectional
  • Frequency: 868-915 MHz
  • Gain: 2dBi
  • Size: 8 x 50mm
  • Connector: SMA male
  • VSWR: <= 1.5
  • Impedance: 50Ω
  • Polarization: linear vertical
  • Work temperature: -40 ~ 85C
  • Pigtail connectors: SMA female - U.FL
  • Pigtail length: ~160 mm

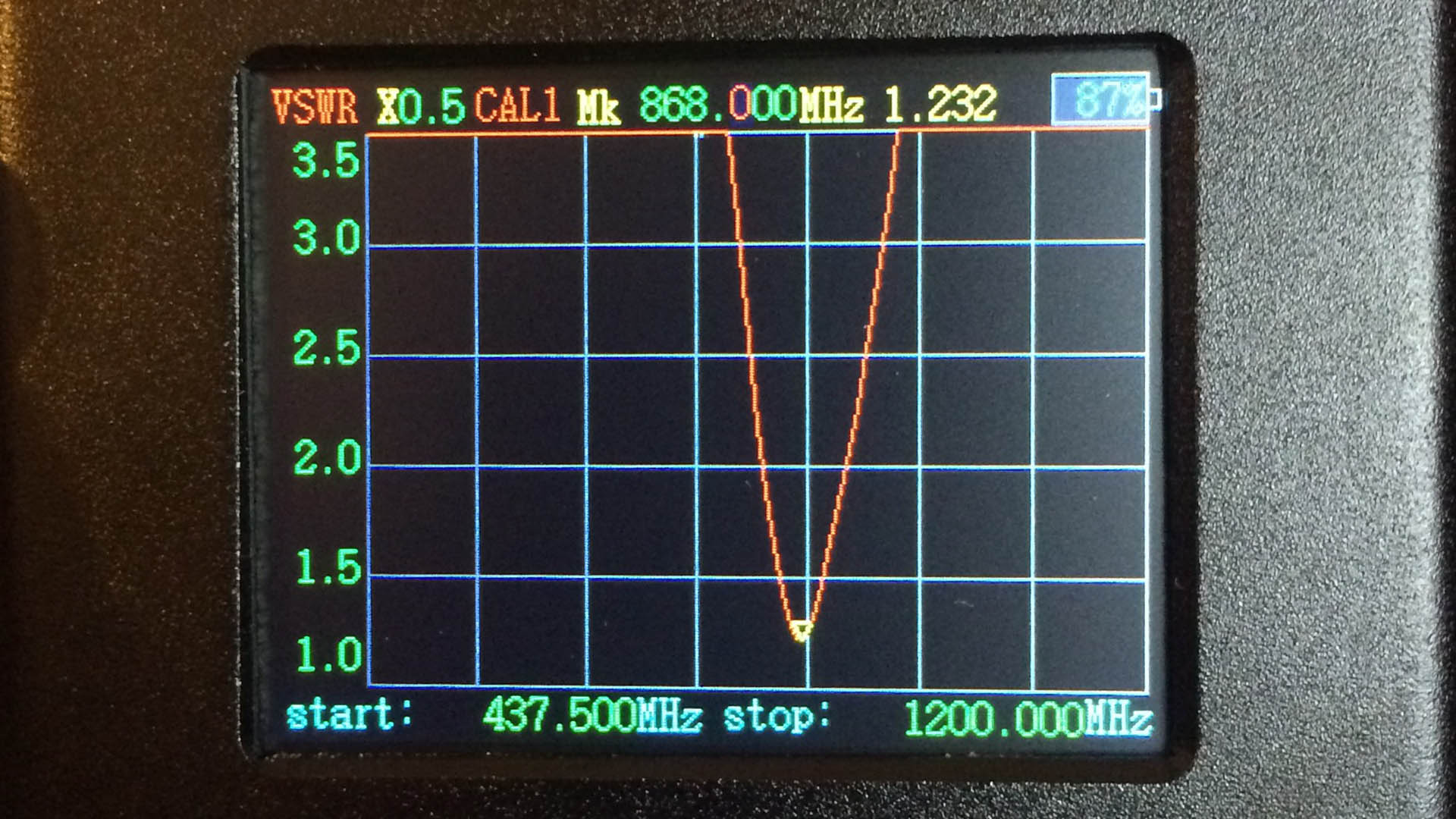

We tested this antenna with N1201SA. VSWR for frequency of 868 MHz was between 1.23 and 1.5 (depending on the specific one piece)
