Adafruit Motor/Stepper/Servo Shield Kit

SKU:
adafruit-motor
Supplier:

Want to build a robot? This shield will help

Product is retired

Replaced by: Adafruit Motor/Stepper/Servo v2

Product has replacement: Adafruit Motor/Stepper/Servo v2

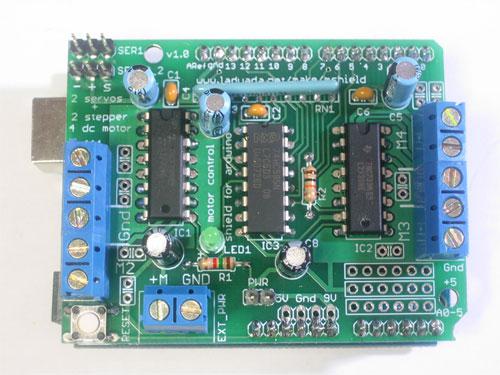

Shield kit from Adafruit for driving DC motors, steppers and hobby servos

  • 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter!
  • 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 36VDC.
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
  • Pull down resistors keep motors disabled during power-up
  • Big terminal block connectors to easily hook up wires (18-26AWG) and power
  • Arduino reset button brought up top
  • 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
  • Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
  • Download the easy-to-use Arduino software library, check out the examples and you're ready to go!
