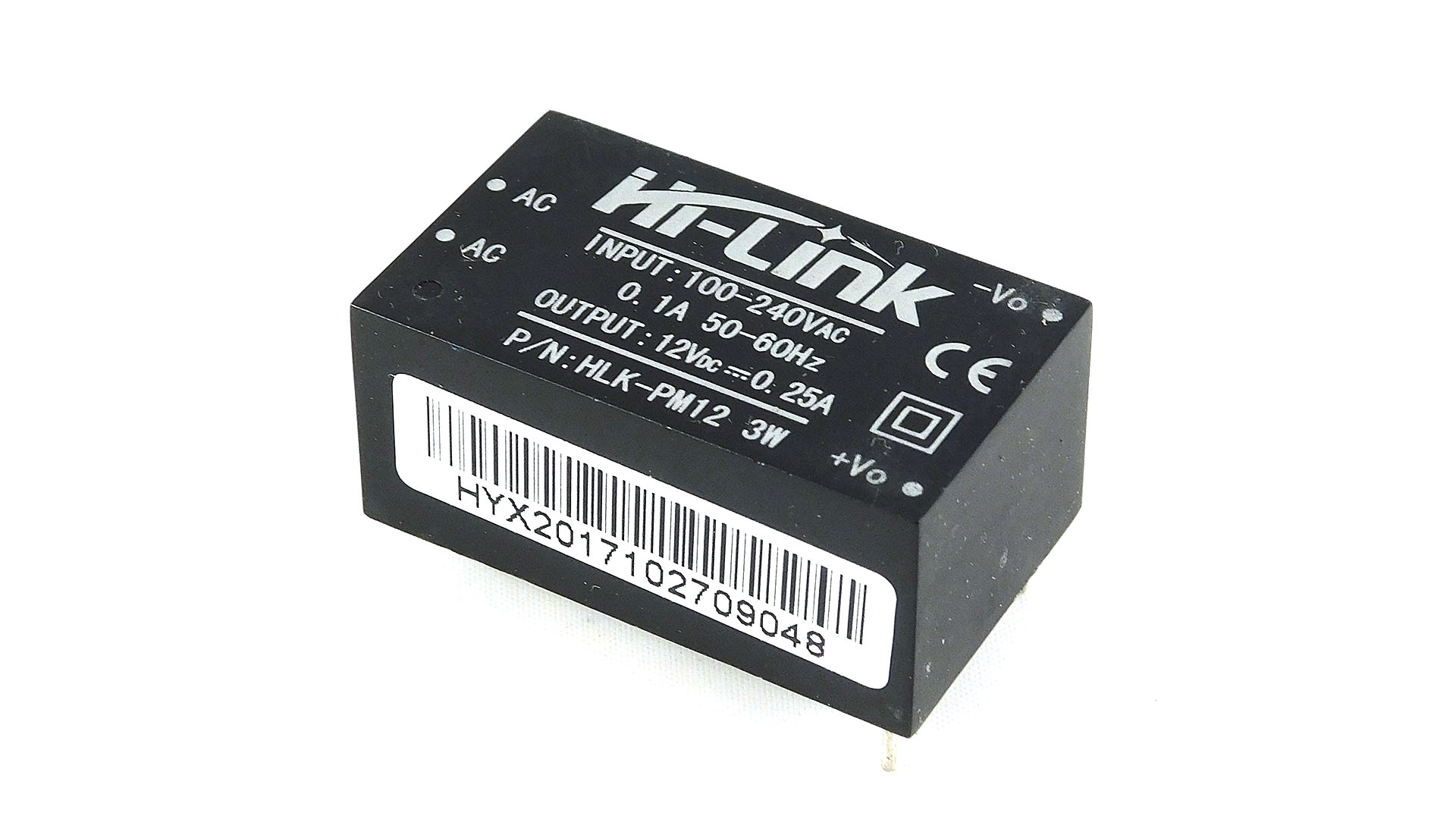

Ultra-compact power supply module HLK-PM12 100-240V / 12V 250mA

SKU:
ZAS-1376
Weight:
25 g

On stock: 195

PLN 19,00
PLN 15,45 w/o VAT
EUR 4,37
EUR 3,55 w/o VAT
How many Discount Price per piece
with VAT, in PLN
1 19,00
5+ 8,00 % 17,48
10+ 12,00 % 16,73
25+ 16,00 % 15,97
100+ 20,00 % 15,20
Quantity discounts does not sum with other discounts

Specification:

  • Rated input voltage: 100-240 VAc
  • Input voltage range: 90-264 VAc
  • Maximum input current: ≤0.2 A
  • Input current surge: ≤10 A
  • Maximum input voltage: ≤270 VAc
  • Enter slow start: ≤50 mS
  • Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%
  • Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%
  • Long-term reliability: MTBF≥100000 h
  • Load rated output voltage: +12±0.1 V DC
  • Full rated output voltage: +12±0.2 V DC
  • Short-term maximum output current: ≥350 mA
  • The maximum output current for a long time: ≥250 mA
  • Voltage Regulation: ±0.2 %
  • Load Regulation: ±0.5 %
  • Output ripple and noise: ≤70 mVp-p
  • Output over-current protection: 110-150% of the output maximum load
  • Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
