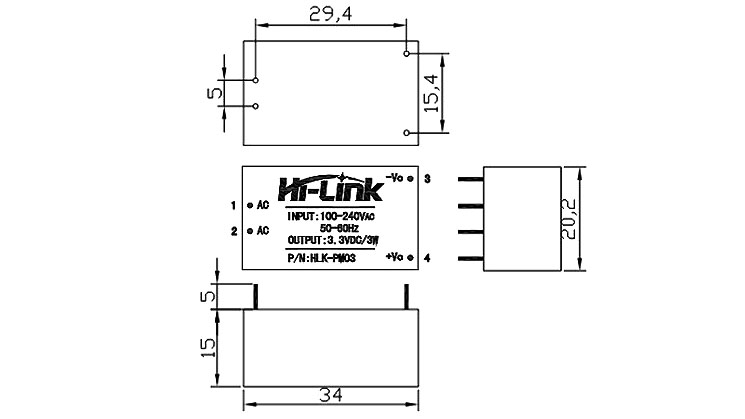

Ultra-compact power supply module HLK-PM03 100-240V / 3.3V 1000mA

Specification:

• Rated input voltage: 100-240 VAc
• Input voltage range: 90-264 VAc
• Maximum input current: ≤0.2 A
• Input current surge: ≤10 A
• Maximum input voltage: ≤270 VAc
• Enter slow start: ≤50 mS
• Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%
• Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%
• Long-term reliability: MTBF≥100000 h
• Load rated output voltage: +3.3±0.1 V DC
• Full rated output voltage: +3.3±0.2 V DC
• Short-term maximum output current: ≥1200 mA
• The maximum output current for a long time: ≥1000 mA
• Voltage Regulation: ±0.2 %
• Load Regulation: ±0.5 %
• Output ripple and noise: ≤70 mVp-p
• Output over-current protection: 150-200% of the output maximum load
• Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal

Oferta zasilaczy do druku Hi-Link:

Na zamówienie możemy sprowadzić również:

• HLK-5M03 5W - 3.3V 1500mA
• HLK-5M05 5W - 5V 1000mA
• HLK-5M12 5W - 12V 450mA
