I2C splitter, PCB

SKU:

PCB-1892

Weight:

1 g

I2C splitter, PCB

On stock: Help 335

PLN 0,80

PLN 0,65 w/o VAT

EUR 0,18

EUR 0,15 w/o VAT

How many	Discount	Price per piece with VAT, in PLN
1		0,80
5+	25,00 %	0,60
Quantity discounts does not sum with other discounts

Tags: i2c, pcb, adapter, rozgaleziacz

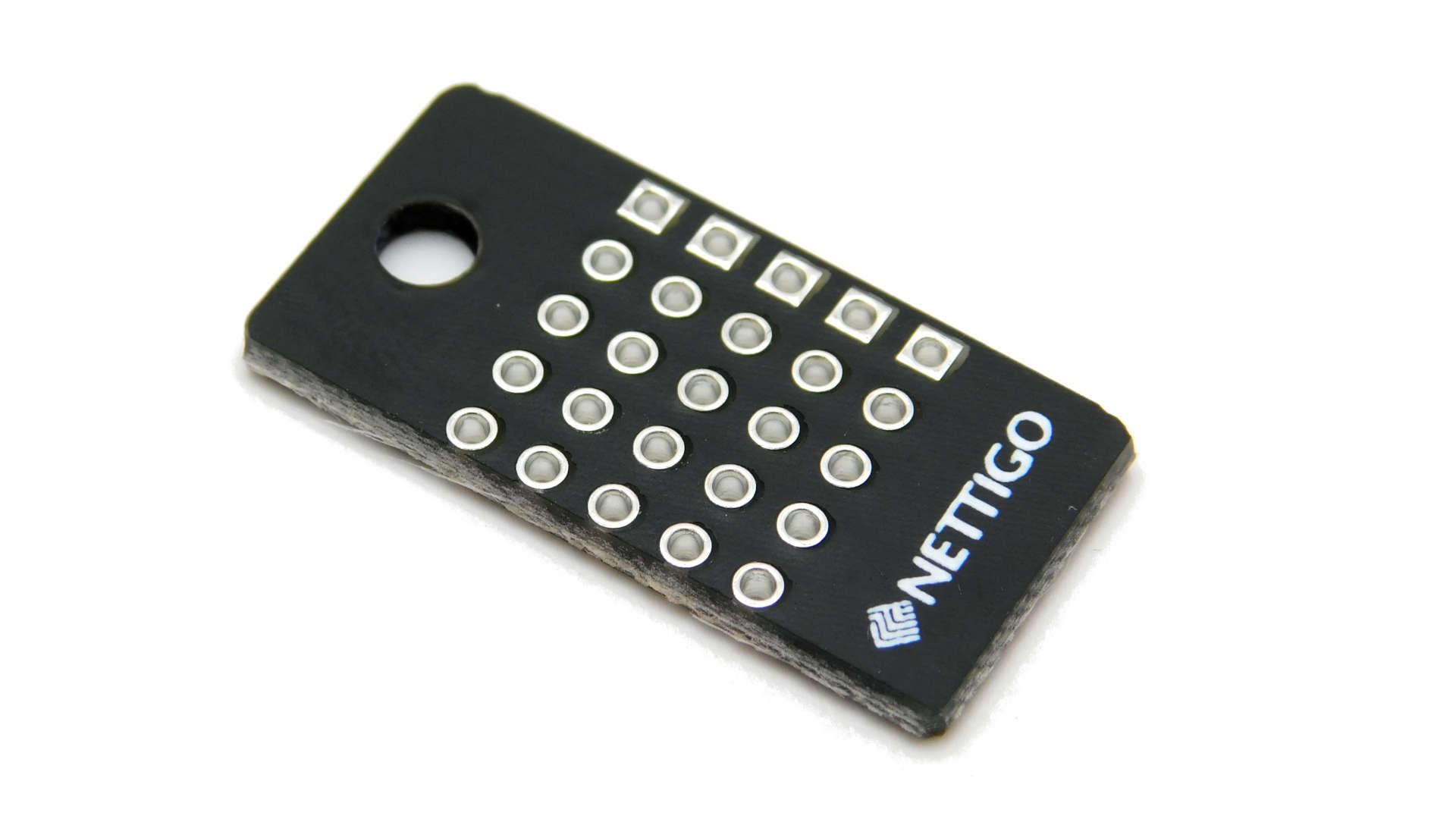

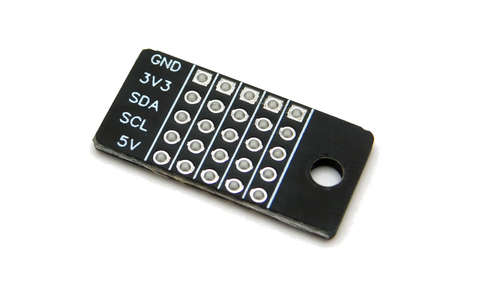

Small PCB (25.5 x 13 mm) with I2C bus splitted. Solder goldpins or female socket and it will split I2C signal. Provide SDA/SCL and GND plus power supply (3.3V and 5V rails) and connect 4 other I2C devices to micro controller.

This PCB is result of our frustration when we want to connect few sensors on I2C bus, but our prototype does not use breadboard. Such a splitter is in very handy in such circumstances.

Specification:

PCB with place for 5 signals (SDA, SCL, GND, 3.3V and 5V)
PCB size - 25.5 mm x 13 mm
one mounting hole (M3)
