Crazyflie 2.0 debug adapter kit

SKU:
PRO-841
Weight: Help
15 g
Supplier:

Crazyflie 2.0 debug adapter kit

On stock: Help 1

PLN 139,00
PLN 113,01 w/o VAT
Help
EUR 32,32
EUR 26,28 w/o VAT

SALE

Outlet

PLN 69,50
PLN 56,50 w/o VAT
Help
EUR 16,16
EUR 13,14 w/o VAT

Nettigo Outlet

Products we want to get rid off ;) Sometimes damaged, sometimes just to complicated or something other making them not welcome in our offer.

Conditions

  • short warranty - 2 weeks to check if product works
  • we are issuing regular VAT invoices for these products
  • returns are accepted in 2 weeks timeframe

Any additional conditions are below in product description

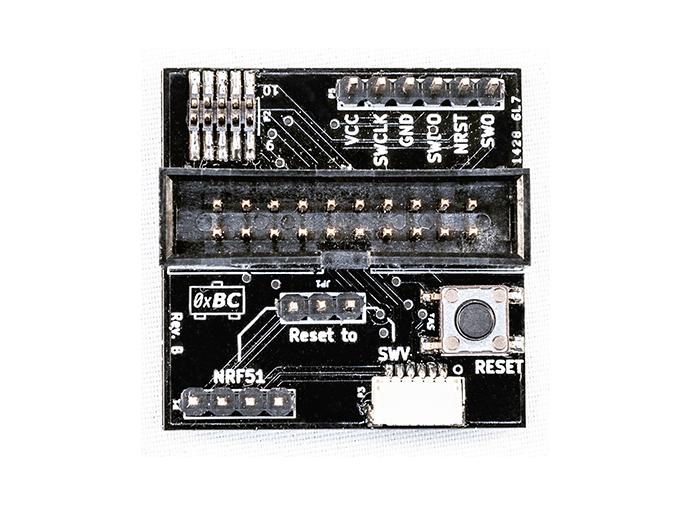

This is a debug-adapter kit that makes connecting a debugger to either of the MCUs a lot easier, by converting the connector pinouts to standard JTAG and SWD pinouts.

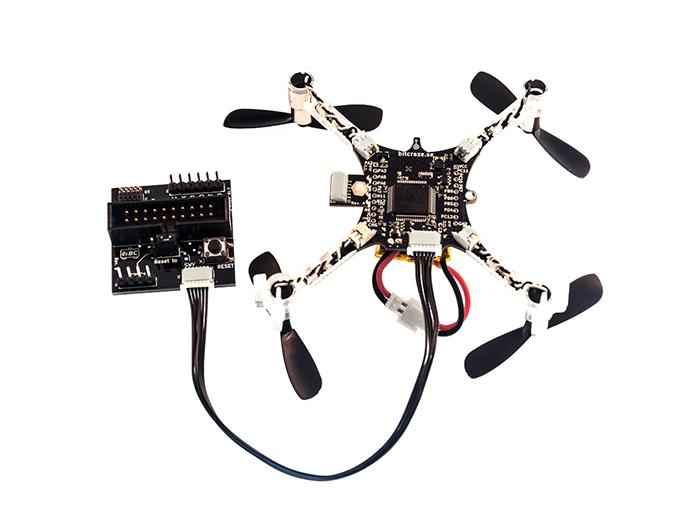

This product is inteded to be used together with the Crazyflie 2.0.

Features:

  • Includes everything needed to more easily debug the MCUs (STM32F4 and nRF51)
  • Multiple debug pinouts supported (including 20-pin JTAG and 10-pin Cortex debug)

Specification:

  • Supported debugger pinouts:

         -  Custom pinout that matches ST Discovery board debug interfaces
         -  Standard Cortex SWV debug 2x6 1.27mm (50mil) SWV interface
         -  Standard 2x10 2.54mm (100mil) JTAG interface

  • Has reset button with jumper for reset support on either STM32F4 and nRF51

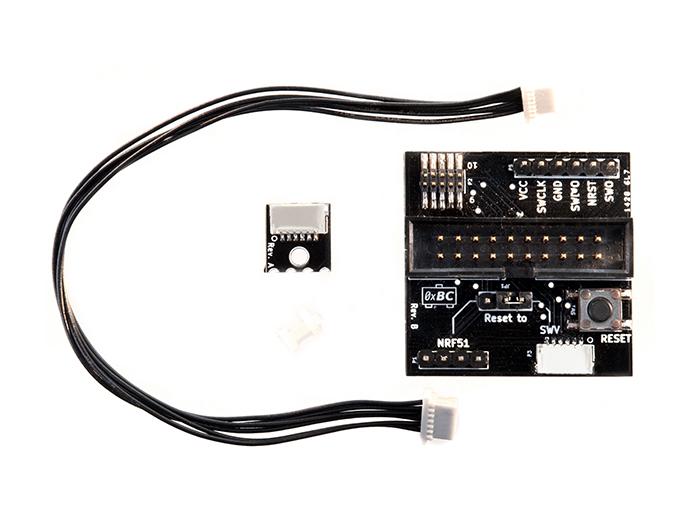

Package contents:

1 x Crazyflie 2.0 debug adapter
1 x nRF51 debug connector
1 x Nylon screw and nut for nRF51 debug connector
1 x 6-pin debug cable for connecting to the Crazyflie 2.0
