Bluetooth Bee - BT with XBee adapters

SKU:
bluetooth-bee
Weight: Help
7 g
Supplier:

Add bluetooth connection to you XBee adapter/shield

On stock: 12

PLN 94,00
PLN 76,42 w/o VAT
Help
EUR 22,07
EUR 17,94 w/o VAT

SALE

Sale -50%

PLN 47,00
PLN 38,21 w/o VAT
Help
EUR 11,03
EUR 8,97 w/o VAT

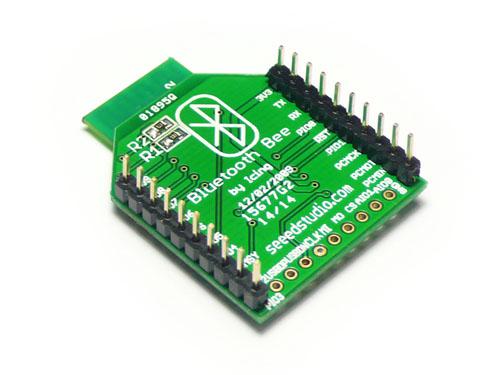

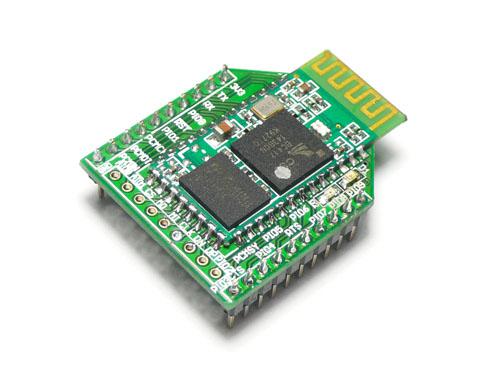

Bluetooth Bee is an easy to use Bluetooth SPP module compatible with existing Xbee sockets, designed for transparent wireless serial connection setup.

Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR(Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).It even has the smallest footprint as small as 12.7mmx27mm. Hope it will simplify your overall design/development cycle.

Features:

  • Typical -80dBm sensitivity.
  • Up to +4dBm RF transmit power.
  • Fully Qualified Bluetooth V2.0+EDR 3Mbps Modulation.
  • Low Power 1.8V Operation, 1.8 to 3.6V I/O.
  • PIO control.
  • UART interface with programmable baud rate.
  • Integrated PCB antenna.
  • Bee compatible headers.

Software Features:

  • Default Baud rate: 38400, Data bits:8, Stop bit:1,Parity:No parity, Data control: has.
  • Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.
  • Use CTS and RTS to control the data stream.
  • When a rising pulse is detected in PIO0, device will be disconnected.
  • Status instruction port PIO1: low-disconnected, high-connected;
  • PIO10 is connected to red led, PIO11 is connected to green led. When master and slave are paired, red and green led blinks 1time / 2s in interval, while disconnected only green led blinks 2 times/ s.
  • Auto-connect the last device on power as default.
  • Permit matched device connect by default.
  • Default PINCODE:0000.
  • Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection.

More information with sample codes can be found on Blueetooth Bee wiki
