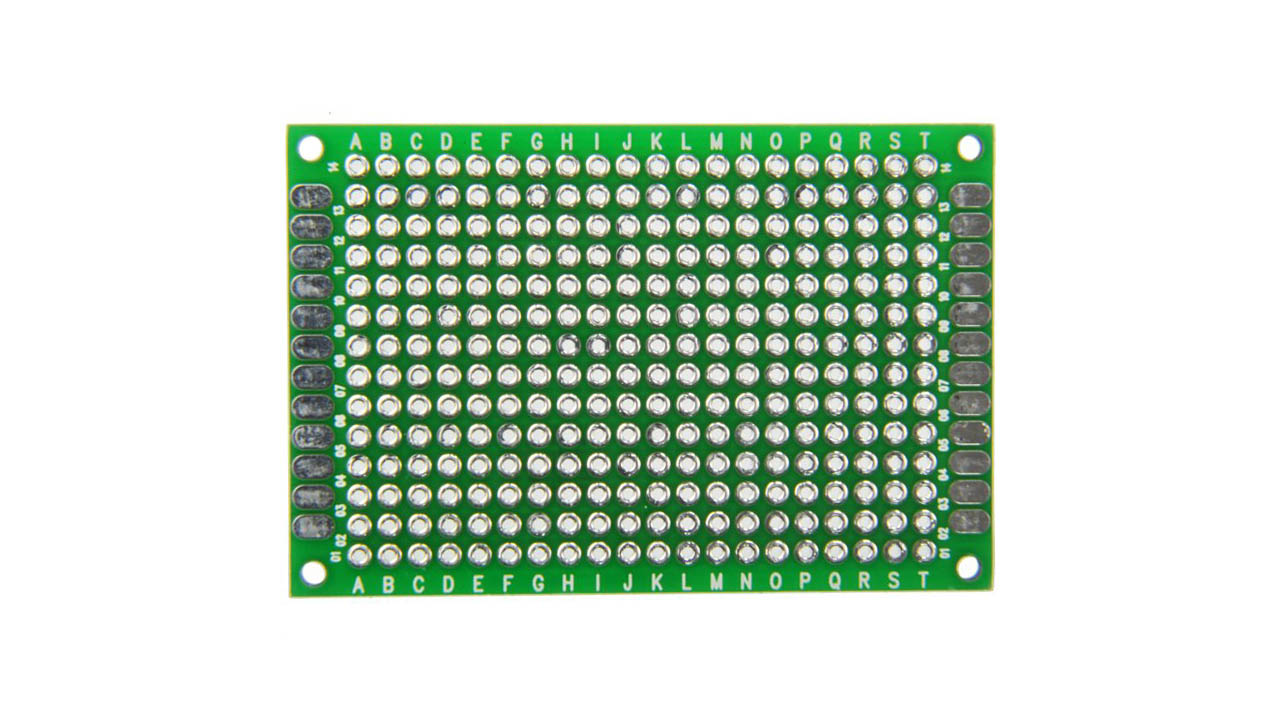

Protoboard, 40x60 mm, double sided

SKU:
PRO-1182
Weight: Help
8 g

Protoboard, 40x60 mm, double sided. 280 metalized pads.

On stock: Help 388

PLN 2,69
PLN 2,19 w/o VAT
Help
EUR 0,63
EUR 0,51 w/o VAT

Tags: protoboard

Protoboards

You can build almost any circuit on breadboard. It is fast and convenient. Need some changes? Just rearrange jumper wires, elements and ready. But this can be also disadvantage when You want to use circuit for some longer time. Jumper wires can be plugged out by accident, elements don’t have rock-solid connectivity… You could design custom PCB, but this is time consuming and process requires many stages. In such cases protoboards are very handy. Regular PCB with drilled holes in 0.1” raster (2.54mm). Each hole is metalized. You can solder elements and wires. Mounting holes are handy when placing board in some case.

Technical details:

  • Size:40 x 60 mm
  • Number of pads: 284 (14 x 20 pads)
  • Additional pads on shorter edges
  • Holes diameter: 0.9 mm
  • Double sided, metalized holes
  • Thickens: 1.6 mm
  • Green PCB, FR-4 type
  • Raster: 2.54 mm / 0.1 “ /100 mils
